Part Descriptions on This Page (English)

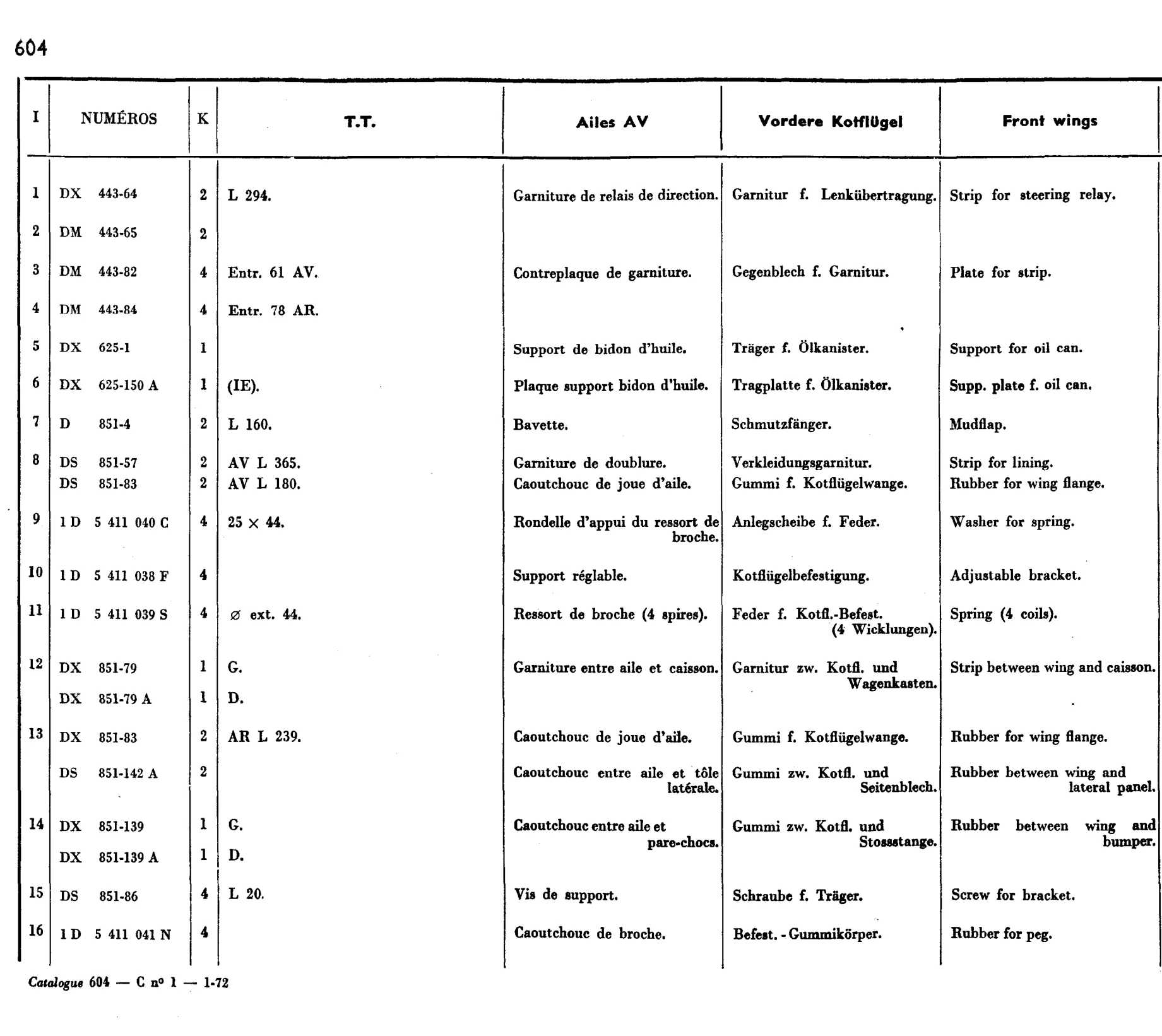

Front wings | Strip for steering relay. | Plate for strip. | Support for oil can. | Supp. plate f. oil can. | Mudflap. | Strip for lining. | Rubber for wing flange. | Washer for spring. | Adjustable bracket. | Spring (4 coils). | Strip between wing and caisson | Rubber for wing flange. | Rubber between wing and lateral panel | Rubber between wing am | Screw for bracket. | Rubber for peg.
