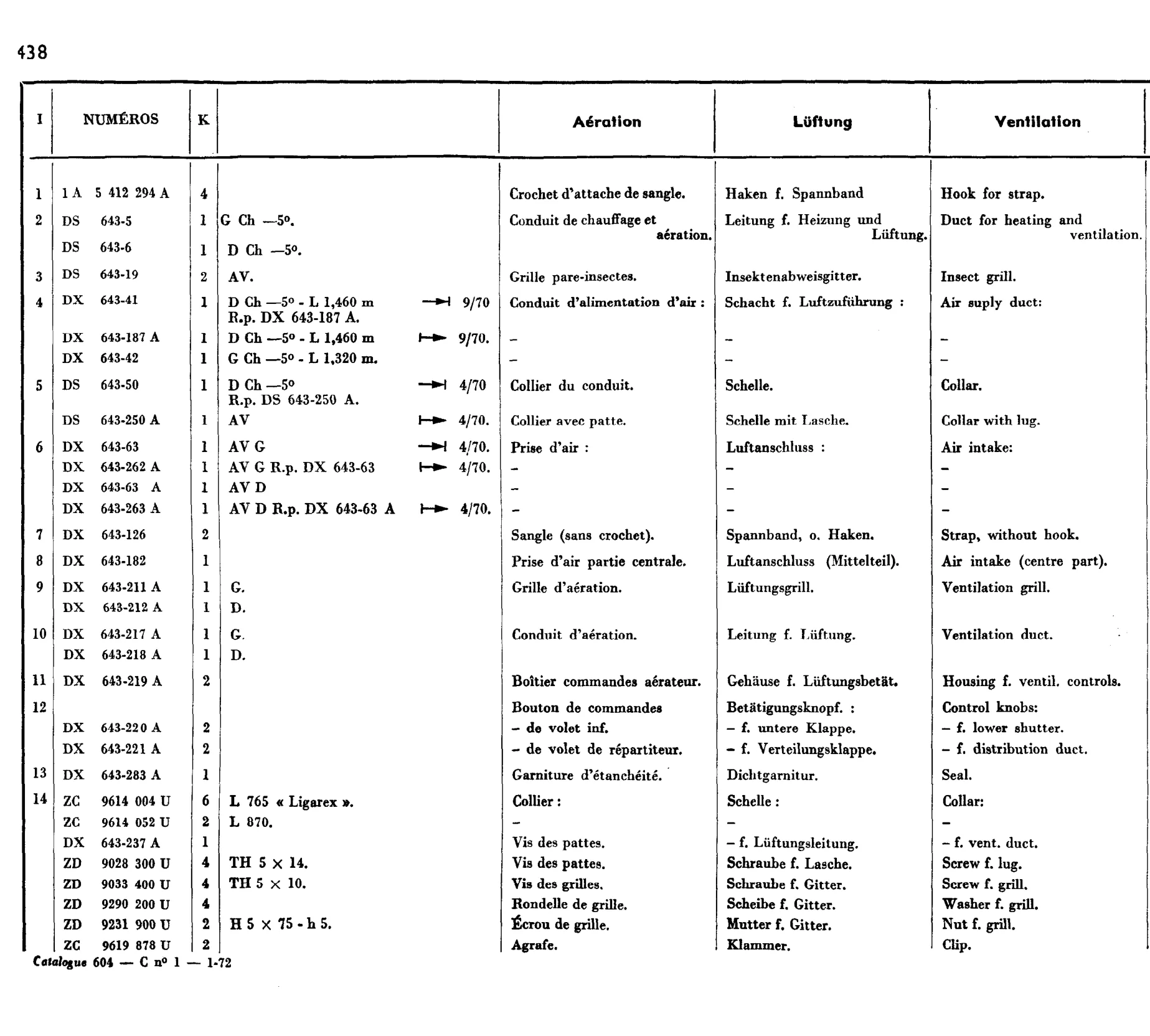

Part Descriptions on This Page (English)
Ventilation | Hook for strap. | Duct for heating and . ventilation | Insect grill. | : Air suply duct: | Collar. | Collar with lug. | Air intake: | Strap, without hook. | Air intake (centre part). | Ventilation grill. | Ventilation duct. | Housing f. ventil. controls. | Control knobs: | - f. lower shutter. | - f. distribution duct. | Seal. | Collar: | - f. vent. duct. | Screw f. lug. | Screw f. grill.
