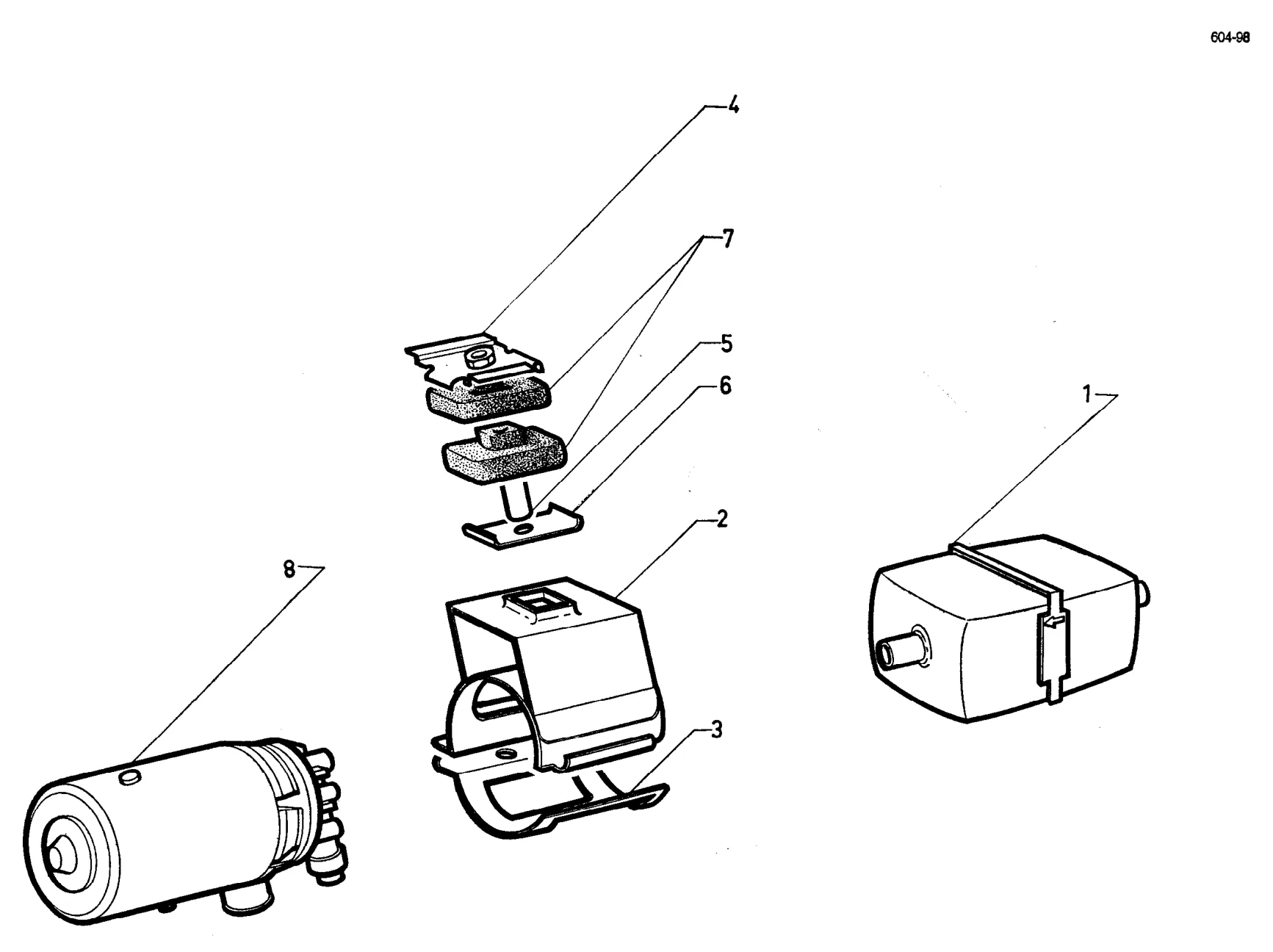

REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.42)
Fuel pump | Fuel filter. | Support for pump. | Clamp for pump. | Support plate for pump. | Distance piece for pump. | Cup for buiIer. | Rubber buffer. | Electric pump. | Screw: - for pump.. - for support. | Washer: - for pump support. - for pump. | Rivet for support plate. | Collar with screw.
