Part Descriptions on This Page (English)

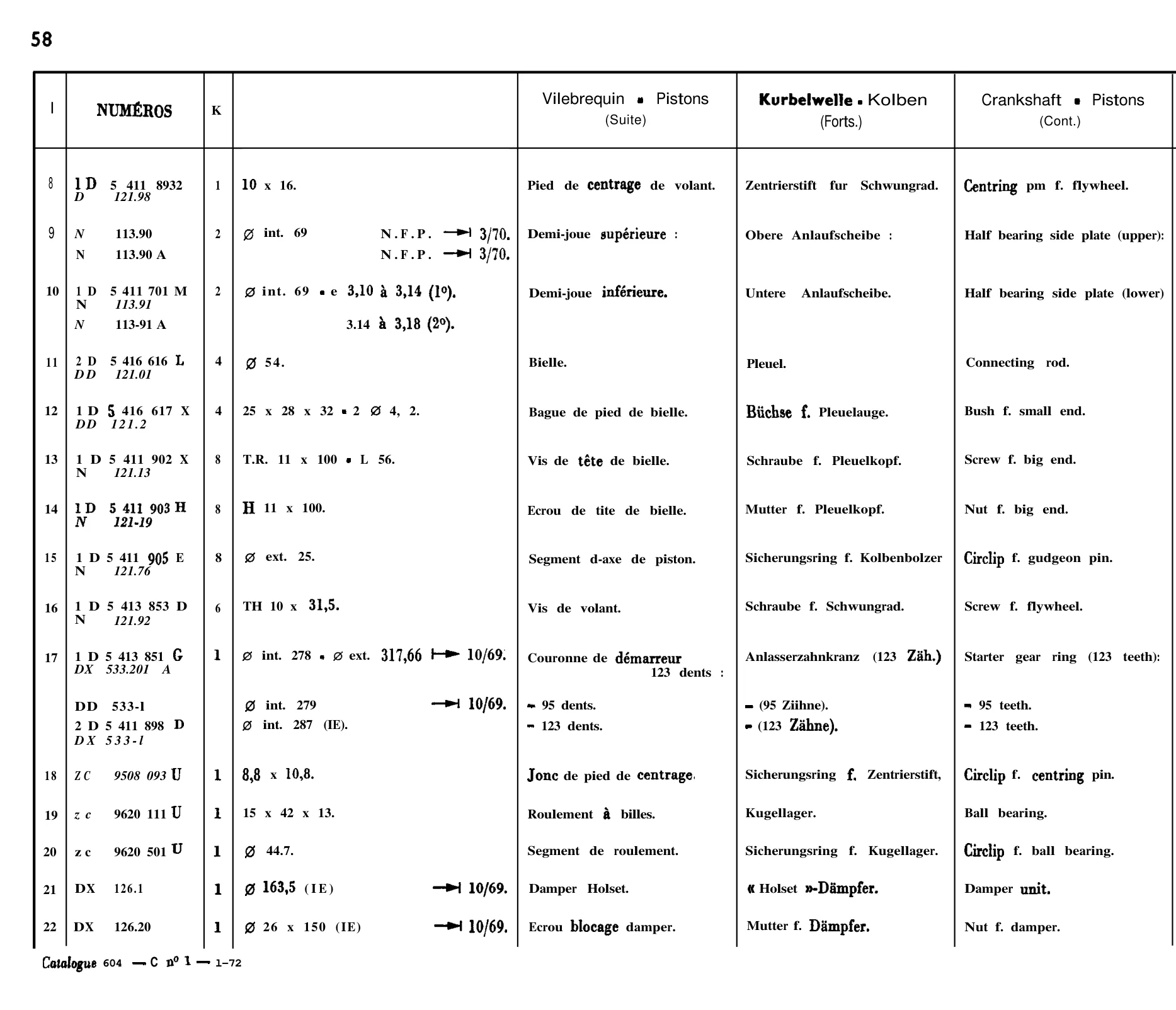

Crankshaft - Pistons | Half bearing side plate (upper): | Half bearing side plate (lower) | Connecting rod. | Bush f. small end. | Screw f. big end. | Nut f. big end. | &clip f. gudgeon pin. | Screw f. flywheel. | Starter gear ring (123 teeth): | - 95 teeth. | - 123 teeth. | &clip f. centring pin. | Ball bearing. | &clip f. ball bearing. | Damper unit. | Nut f. damper.
