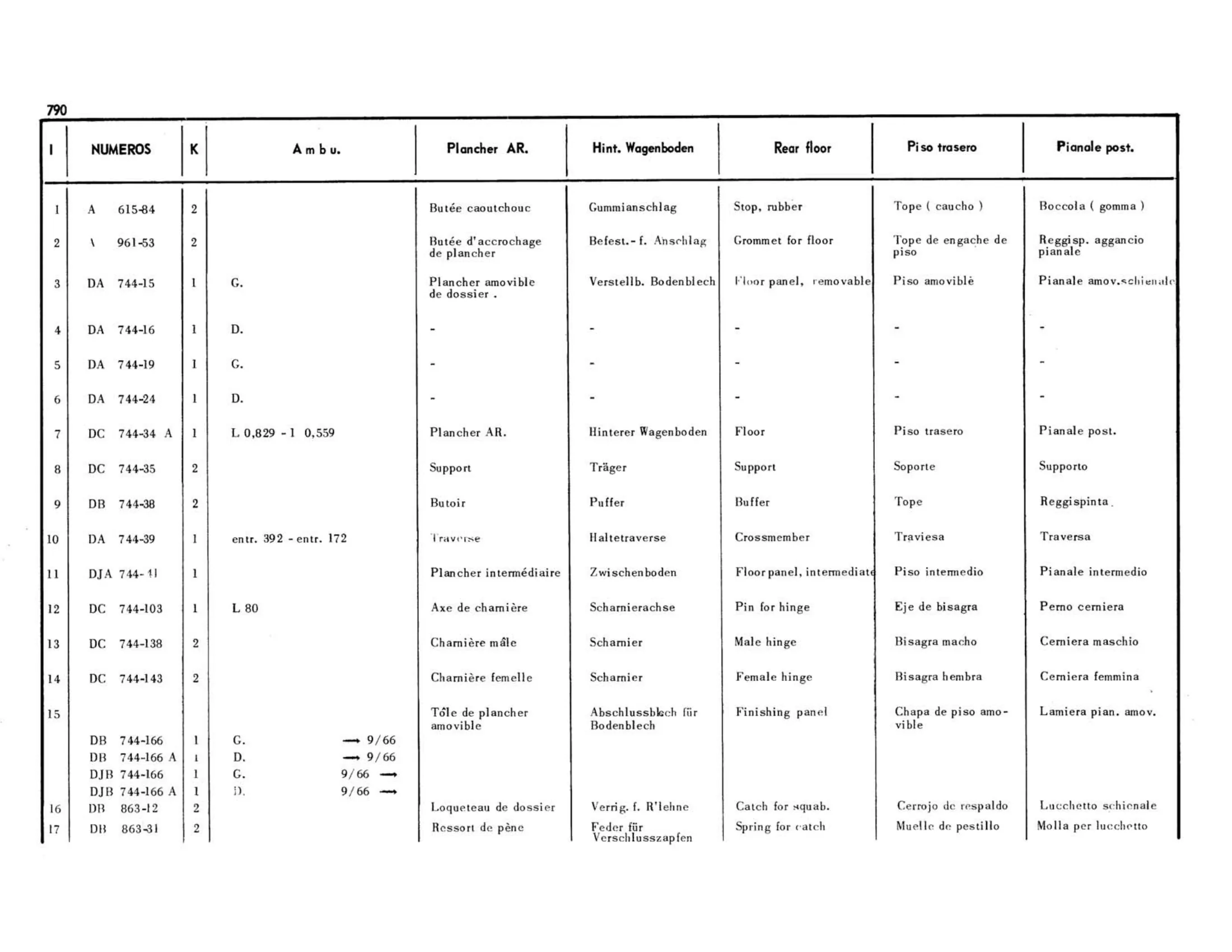

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Stop, rubber | Grommet for floor | Vloor panel, removable| | Floor | Support | Buffer | Crossmember | Floor panel, intermediat | Pin for hinge | Male hinge | Female hinge | Finishing panel | Catch for squab. | Spring for catch
