PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

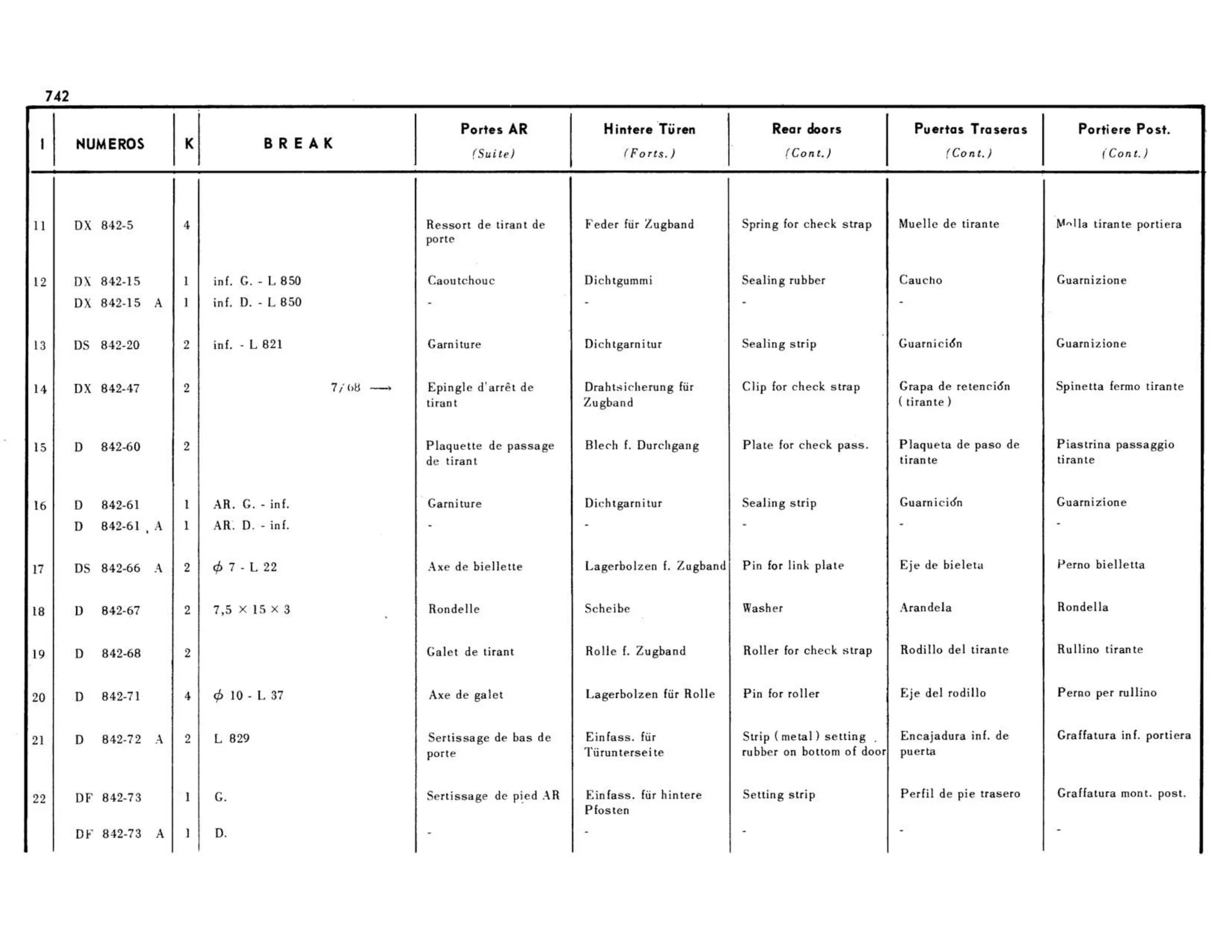

doors Rear | Spring for check strap | Sealing rubber | Sealing strip | Clip for check strap | Plate for check pass. | Sealing strip | Pin for link plate | Washer | Roller for check strap | Pin for roller | Strip (metal) setting tubber bottom of door on | Setting strip
