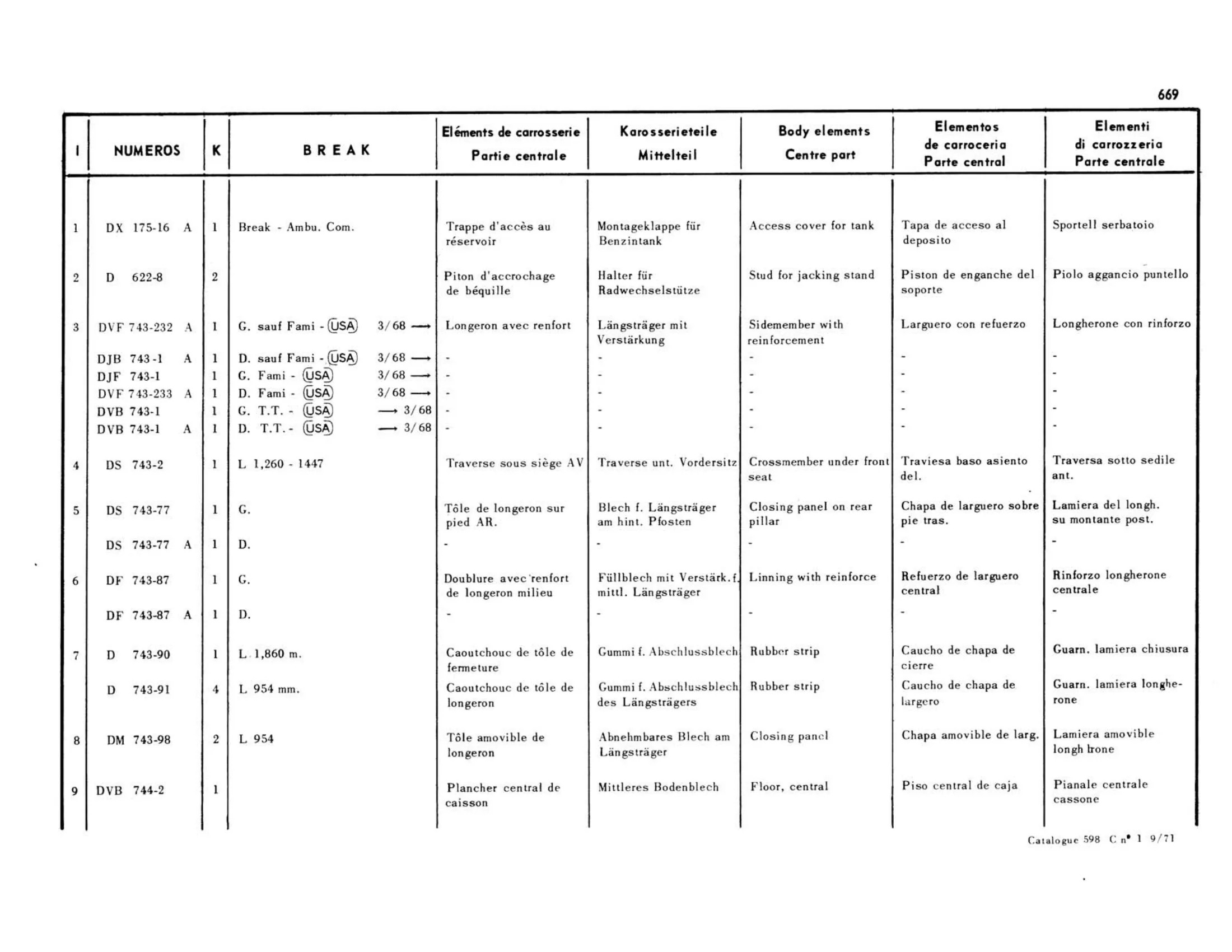

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Body elements | Centre part | for tank Access cover | Stud for jacking stand | Sidemember with | reinforcement | Crossmember under front | seat | Closing panel on rear | pillar | with reinforce Linning | Rubber strip | Rubber strip | Closing panel | Floor, central
