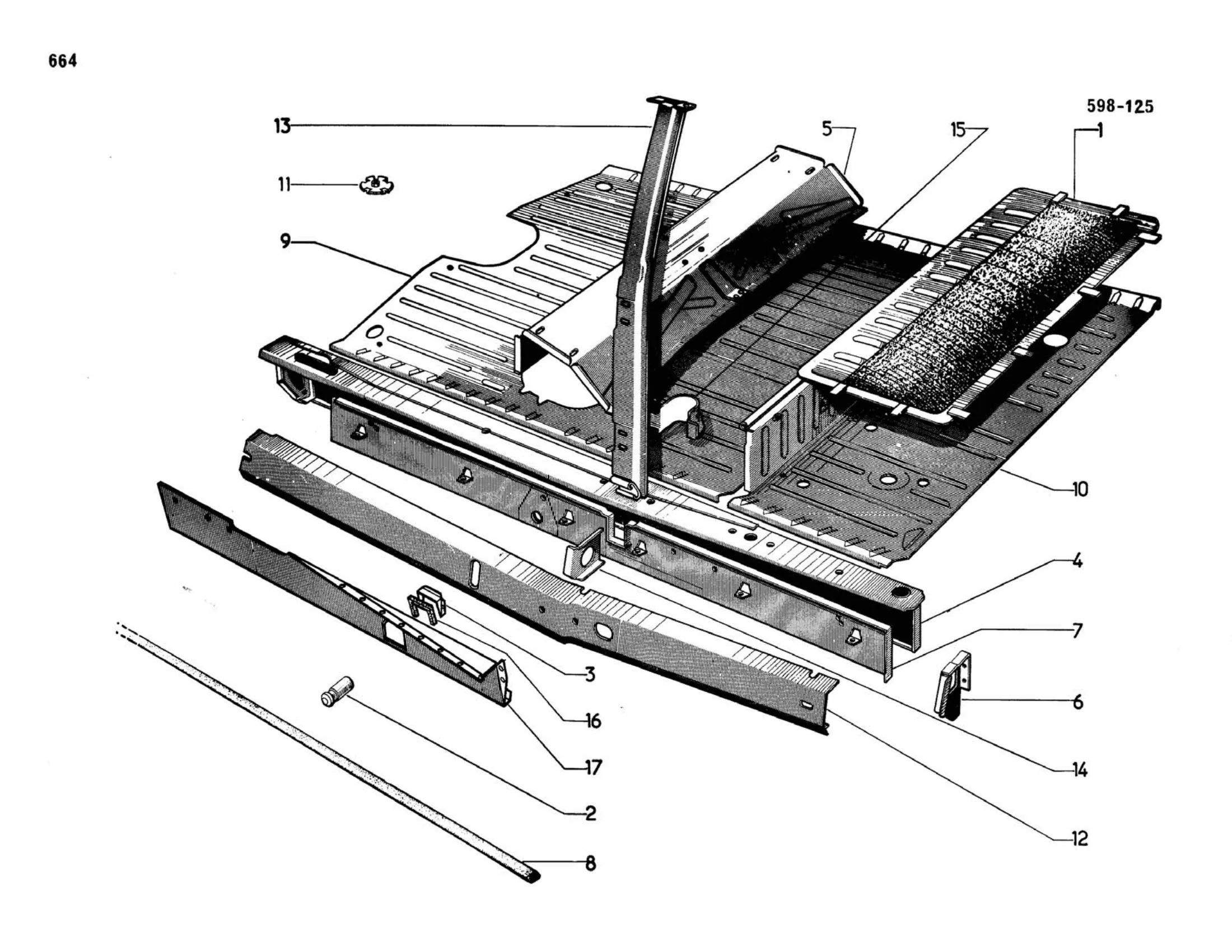

REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.250)
Body elements | Centre part | Access for tank cover | Stud for jacking stand | Protector for stand | recess. | Sidemember assy | Sidemember for middle | unit | Sidemember with assy, | reinforcement | Crossmember under front | seat | Closing panel rear on | pillar | Lining | with reinforcement - | Rubber strip | central Floor, | Heelboard | Rubber obturator
