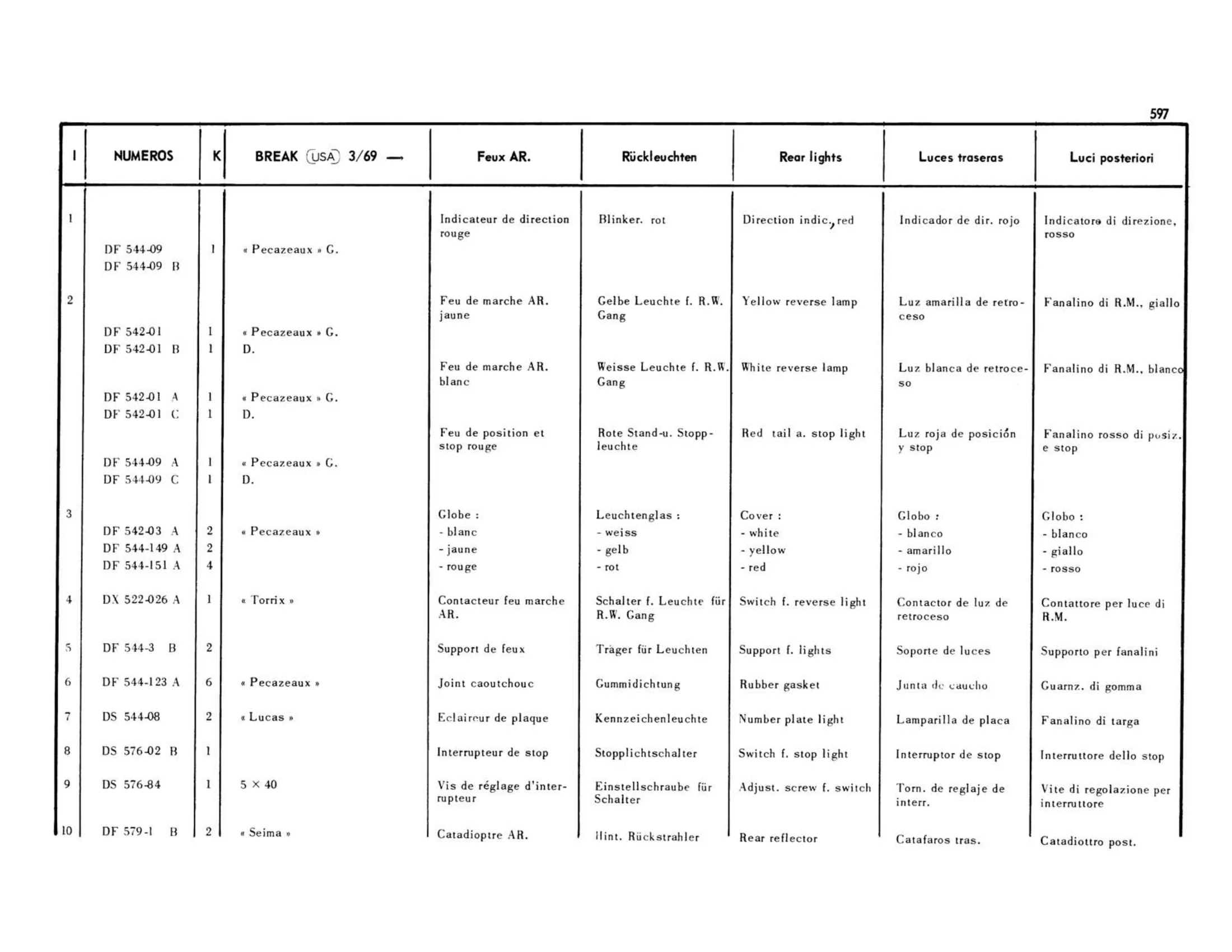

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
lights Rear | Direction indic, red | Yellow lamp reverse | White lamp reverse | Red tail light a. stop | Cover : | white - | yellow - | -red | Switch f. light reverse | Support f. lights | Rubber gasket | Number plate light | Switch f. light stop | Adjust. f. switch screw | Rear reflector
