PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

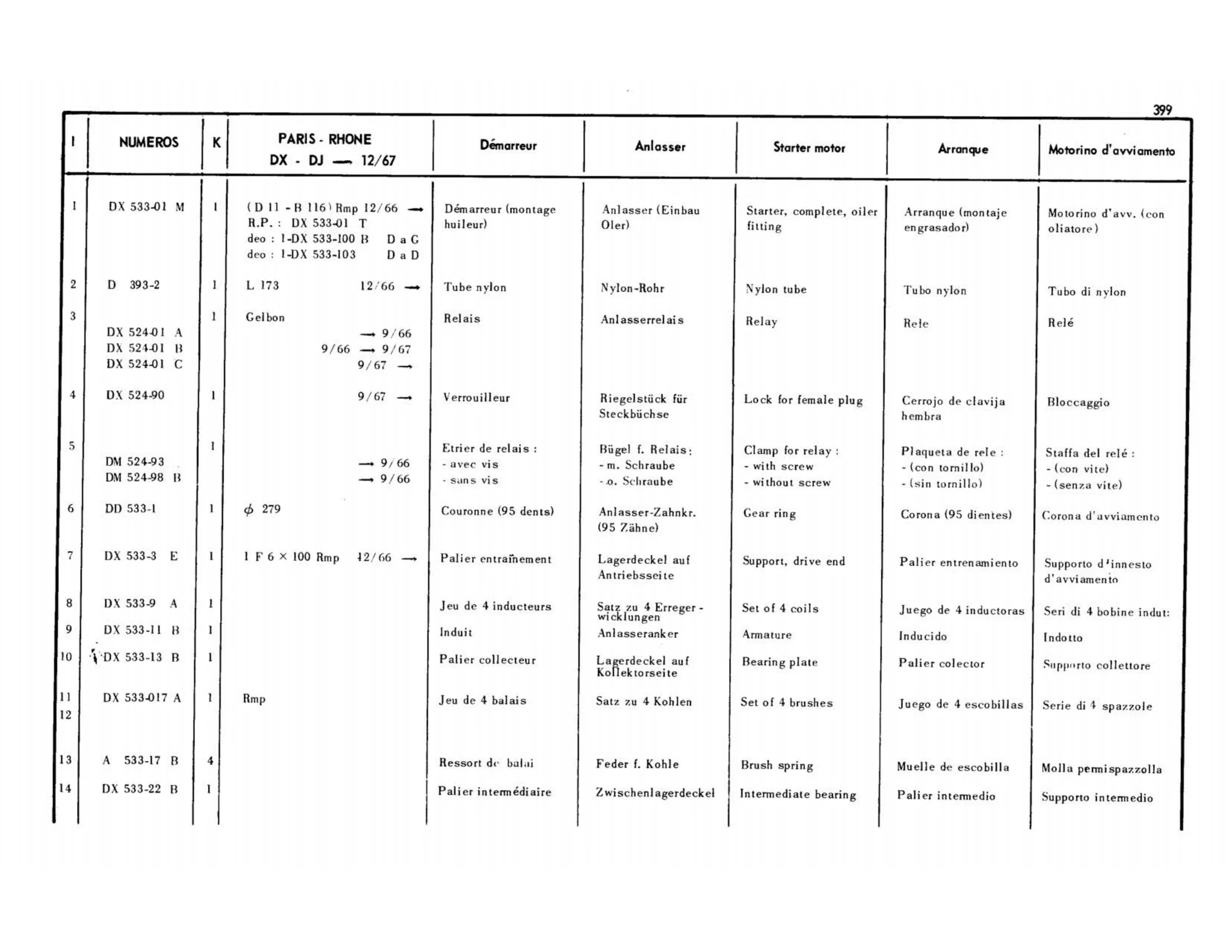

Starter motor | Starter, complete, oiler | fitting | Nylon tube | Relay | Lock for female plug | Clamp for relay ; | with screw - | without - screw | Gear ring | Support, drive end | Set of 4 coils | Armature | Bearing plate | Set of 4 brushes | Brush spring | Intermediate bearing
