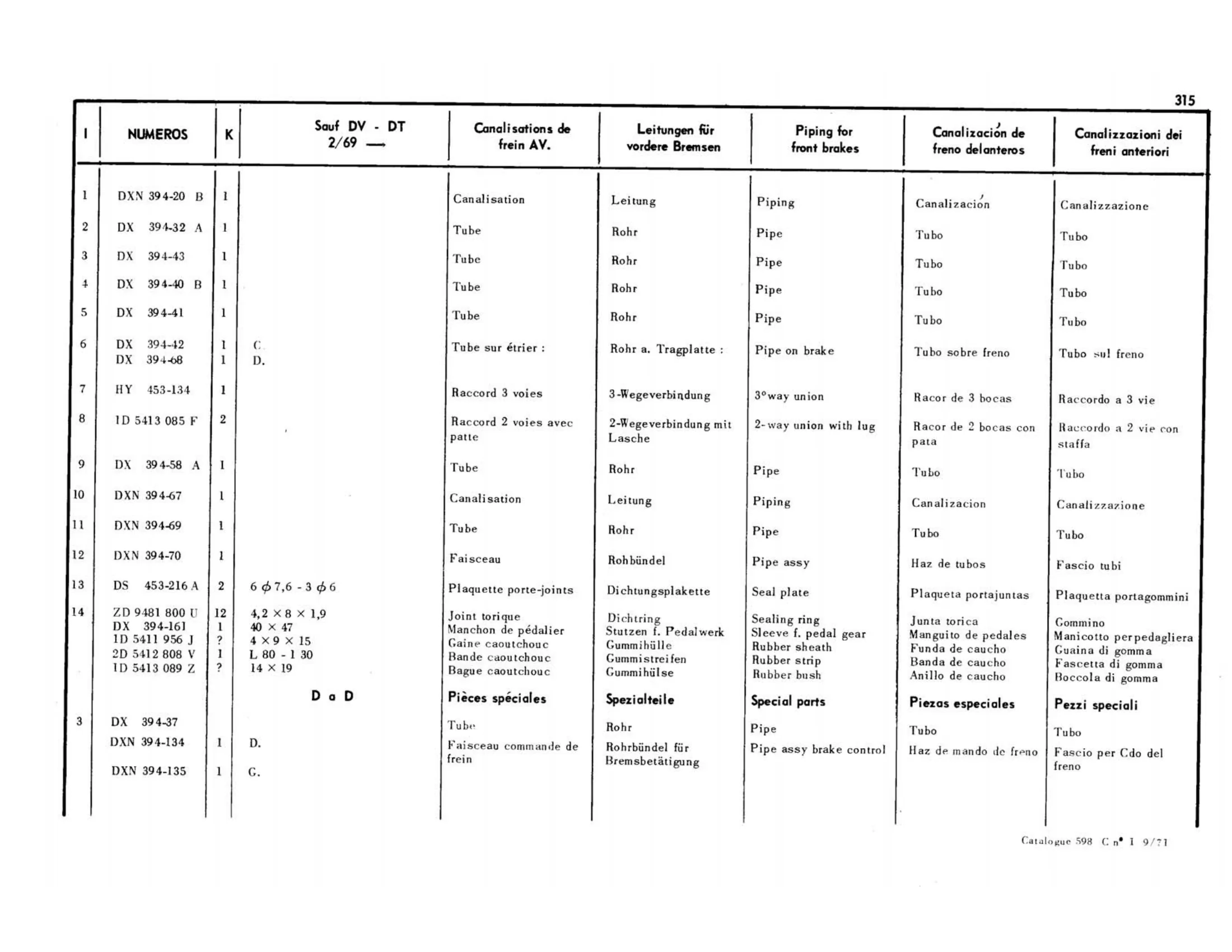

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Piping for front brakes | Piping | Pipe | Pipe | Pipe | Pipe | Pipe brake : on | 3°way union | 2-way union with lug | Pipe | Piping | Pipe | Pipe assy | Seal plate | Sealing ring Sleeve f. pedal gear Rubber sheath | Rubber strip Rubber bush | Special parts | Pipe | Pipe brake control assy
