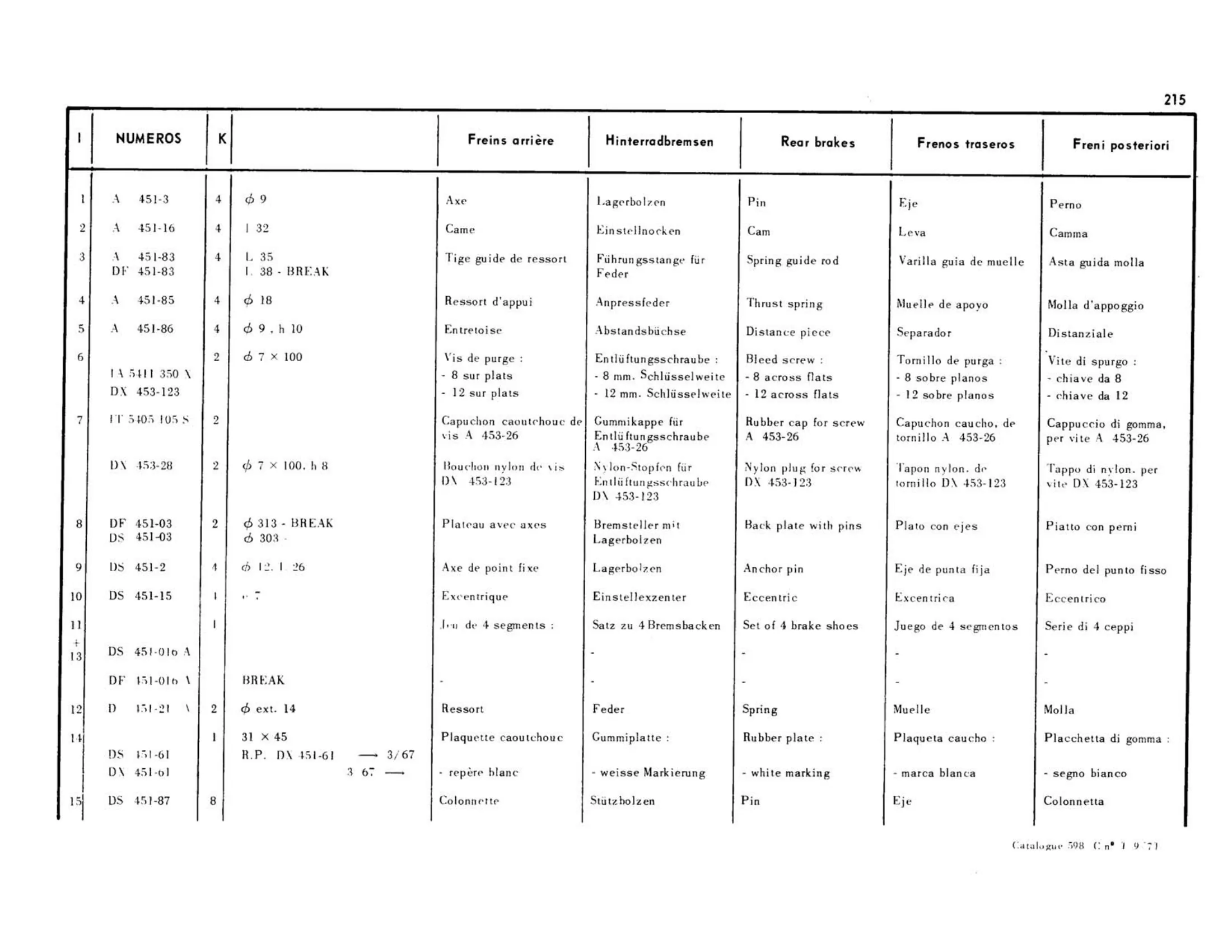

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Rear brakes | Spring guide rod | Thrust spring | Distance piece | Bleed screw : | 8 flats - across | 12 flats across - | Rubber for cap screw A 453-26 | Nylon plug for screw | DX 453-123 | Back plate with pins | Anchor pin | Eccentric | Set of 4 brake shoes | Spring | Rubber plate : | white marking - | Pin
