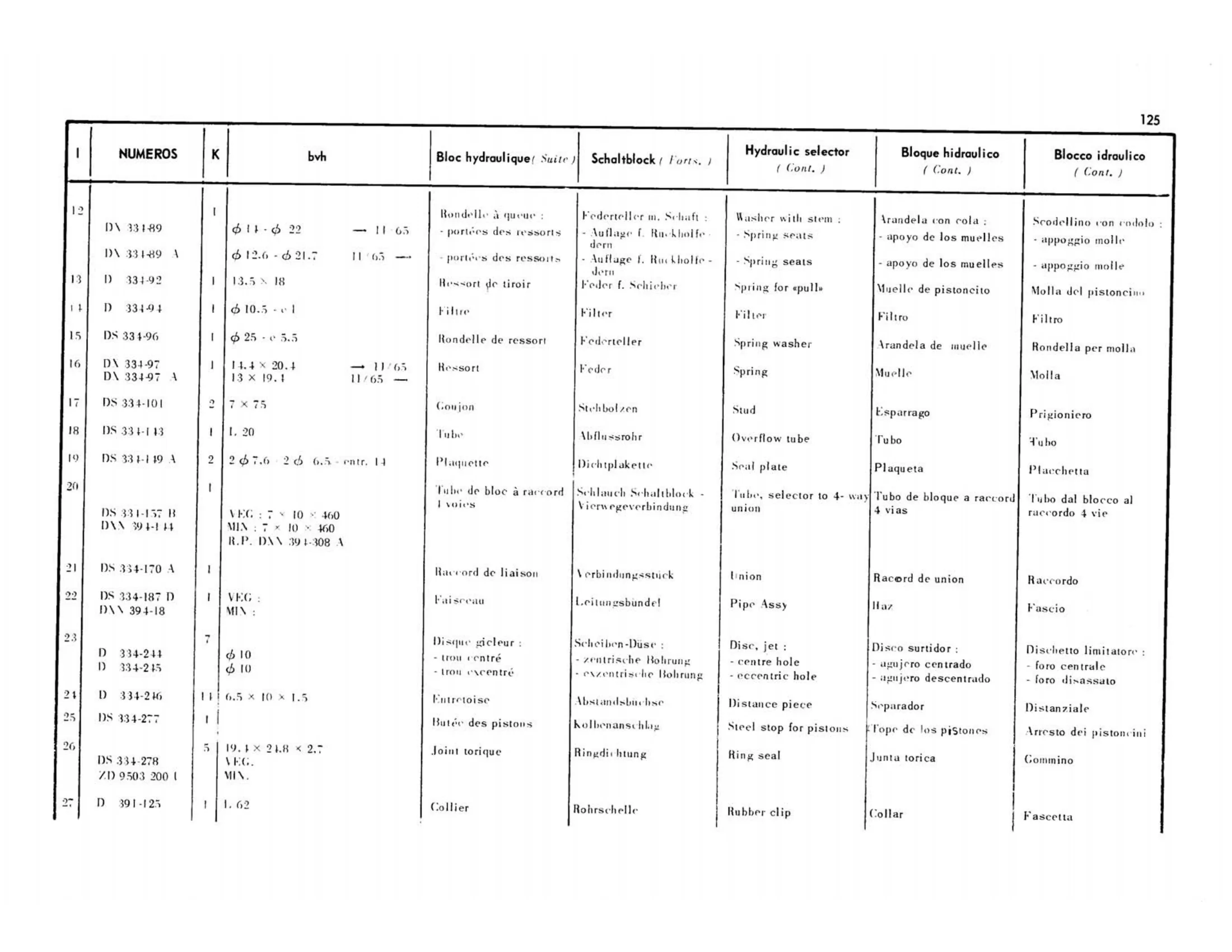

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Hydraulic selector | Cont, ( ) | Washer with stem ; | Spring seats | Spring - seats | Spring for «pull» | Filter | Spring washer | Spring | Stud | Overflow tube | Seal plate | selector to 4- way | union | Union | Pipe Assy | Disc, jet; | hole centre - | eccentric hole - | Distance piece | Steel for pistons stop | Ring seal | Rubber clip
