SP-6
cxparts8185 · p.963
PART DESCRIPTIONS ON THIS PAGE

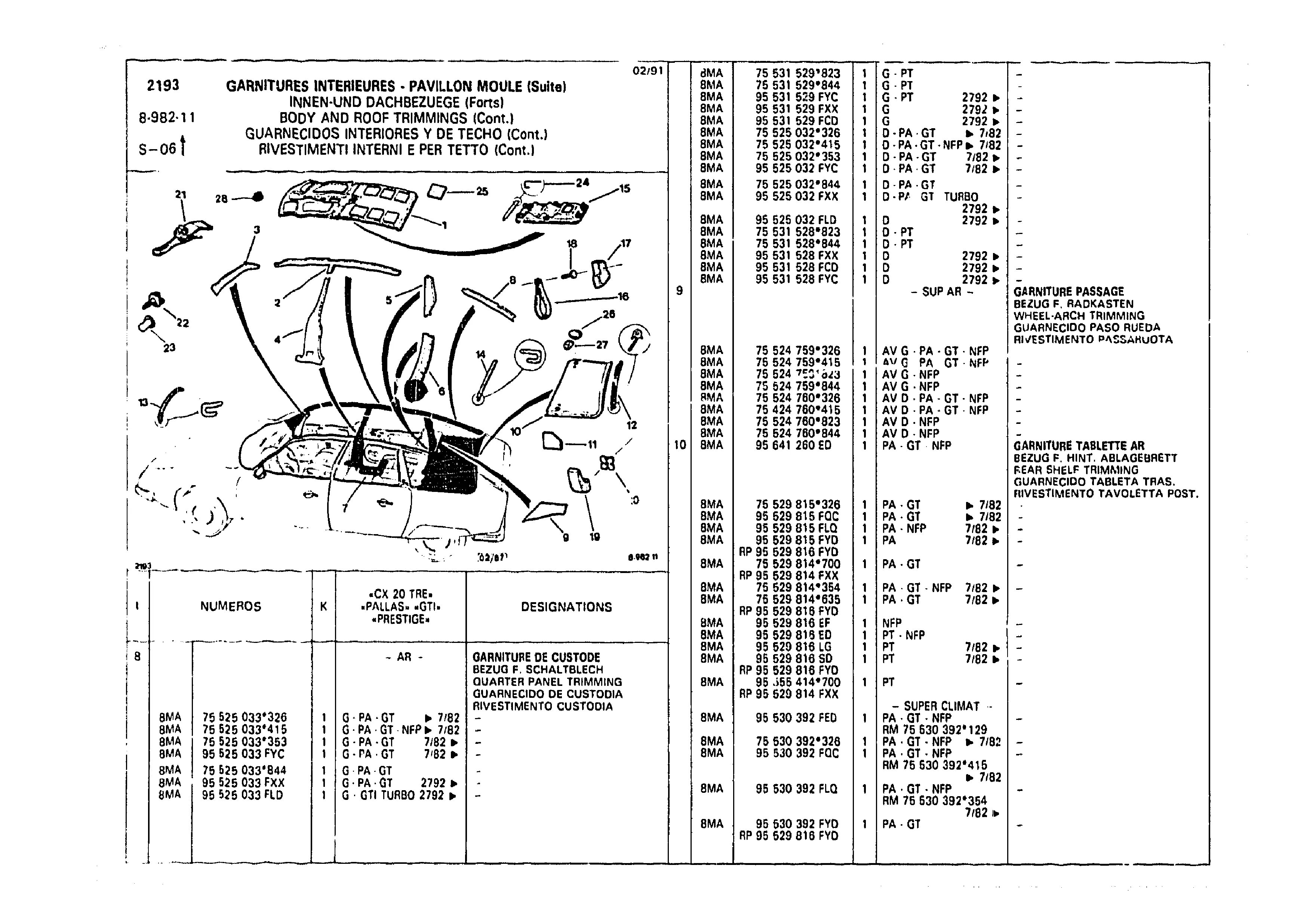

FEAR SHELF TRIMMING
Vehicle Application:
Citroën CX Vehicles · June 1981 – July 1985
Choose a section…
CX 81-85 (p.1)
Listing (p.2)
Index (p.13)
GROUP 1 (p.72)
Table Of Picture (p.73)
Complete Engine (p.76)
Cylinder-Head (p.82)
Cylinder-Block (p.100)
Oil Sump & Oil Dipstick (p.102)
Timing Gear-Cover (p.104)
Cylinder Block (p.105)
Oil Sump And Dipstick (p.110)
Timing Gear Housing (p.111)
Cylinder Block-Plugs (p.112)
Oil Sump And Dipstick (p.116)
Timing Gear Housing (p.117)
Timing Gear Cover-Protector (p.118)
Crankshaft - Pistons (p.119)
CrankShaft (p.124)
Connecting Rods - Piston Rings (p.126)
Crankshaft (p.127)
Con Rods And Pistons (p.129)
Intermediate Shaft (p.132)
Timing (p.133)
Camshaft (p.134)
Casing - Pulley (p.135)
Camshaft (p.136)
Camshaft - Pulley (p.138)
Camshaft (p.142)
Rockers - Valves (p.146)
Injection Pump - Accelerated Idling (p.151)
Injection Pump - Overflow Pipes (p.153)
Injectors - Injection Pipes (p.157)
Injection Pump (p.159)
Injection Pipes And Injectors (p.161)
Injection Device (p.162)
Electronic Computer (p.166)
Turbo Compressor And Unions (p.167)
Blow-Off Valve (p.170)
Oil Circuit F. Turbo Compressor (p.171)
Oil Pump (p.173)
Bracket And Filter Cartridge (p.182)
Water Pump (p.184)
Water Pump F. Petrol Engine (p.185)
Water Pump F. Engine (p.188)
Cover - Securing F. Water Pump (p.189)
Belt Protector (p.190)
Electric Fan (p.194)
Fan (p.195)
Complete Gearbox (p.197)
Gearbox Housing (p.202)
Gearbox - Components - Housing (p.204)
Gearbox - Hydraulic Selector (p.205)
Gearbox - Securing (p.206)
Speedometer Pinion - Drive Socket (p.209)
Gearbox - Pinons And Shafts (p.210)
Set Od Pinions - Synchronisers F. 5TH Speed (p.222)
Fork And Spindles (p.226)
Gear-Change Control, Gearbox Side (p.230)
Gear-Change Control, Binacle Side (p.233)
Differential (p.239)
CX 81-85 (p.242)
Listing (p.243)
GROUP 2 (p.254)
Table Of Picture (p.255)
Inlet Manifold (p.258)
Inlet and Distribution Pipes (p.260)
Inlet Manifold (p.270)
Accelerator Control (p.272)
Idling Correction Control (p.284)
Idling Air And Suction Circuit (p.286)
Carburettor (p.295)
Air Filter (p.305)
Exhaust Manifold (p.318)
Intake And Vaccum Circuit (p.324)
Gas Recovery And Suction Pipes (p.327)
Oil Gas Recovery (p.329)
Anti-Pollution (p.331)
Vacuum Circuit F. gas Re-Use (p.340)
Anti-Pollution (p.341)
Ignition Distribution Bracket (p.342)
Ignition Control Box (p.343)
Housing Between Engine And Clutch Housing (p.345)
Distributor Ducellier (p.346)
Magnetic Distributor (p.348)
Ignition Distributor (p.350)
Ignition Computer And Pick-Up Unit (p.354)
Anti-Knock Device (p.357)
Ignition Vacuum Circuit (p.358)
Ignition Pressure Unit (p.359)
Ignition Coil (p.360)
Clutch (p.369)
Automatic Clutch (p.371)
Alternator Securing (p.374)
Alternator With built-In Regulator (p.378)
Alternator - Regulator (p.398)
Starter Motor Securing (p.403)
GROUP 3 (p.418)
Table Of Picture (p.419)
Hp-Pump (p.421)
Pressure Regulator (p.424)
Safety Valve (p.427)
Brake Accumulator (p.428)
Brake Pressure Limiter (p.429)
Hydraulic Fluid Tank (p.430)
Clutch Pipings (p.432)
Suspension Piping (p.433)
Brake Piping (p.437)
Brake And Steering Piping (p.439)
Return Piping (p.444)
Piping Brackets (p.447)
Piping Securing And Protection (p.449)
Front Arms And Stops (p.451)
Pivot With Brake Housing (p.453)
Wheels (p.455)
Light Alloy Wheel (p.457)
Rear Arms - Stub Axle - Stop (p.458)
Front Suspension Cylinder (p.462)
Rear Suspension Cylinder (p.464)
Height Correctors (p.466)
Anti-Roll Bars - Connection rods (p.468)
Manual Height Control (p.471)
Steering Wheel - Anti-Theft Device (p.473)
Steering Wheel - Antitheft - Shaft (p.475)
Steering Control Box (p.478)
Steering Box And Rods (p.480)
Steering Rack And Housings (p.484)
Steering Piston And Sealings (p.486)
Steering Regulator (p.488)
CX 81-85 (p.489)
Listing (p.490)
GROUP 4 (p.501)
Table Of Picture (p.502)
Pedal Gear (p.503)
Brake Pedal Gear (p.509)
Clutch Cylinders (p.510)
Differential Shaft Bearings (p.512)
Driveshafts - Differential Shafts (p.514)
Driveshafts (p.517)
Front Brakes (p.519)
Rear Brakes (p.521)
Brake Control Valve (p.525)
Brake Control Valve With Compensator (p.526)
Hydraulic Unit - Bracket (p.528)
Picking-up Units - Brackets (p.529)
Computer - Relays - Brackets (p.530)
Hand Brake - Handle (p.531)
Hand Brake - Levers And Cables (p.532)
GROUP 5 (p.534)
Table Of Picture (p.535)
Wiring (p.537)
Feeding Leads (p.546)
Connectors (p.548)
Electrical Equipment (p.553)
Bulbs (p.558)
Instrument Panel (p.560)
Econoscope (p.578)
Speed Regulation (p.579)
Instrument Panel - Accessories (p.581)
Switches - Console Accessories (p.583)
Battery - Bracket (p.586)
Front Lighting (p.590)
Fog Front Lighting (p.594)
Rear Lighting (p.595)
Interior Lights - Switches (p.597)
Window Wipers (p.600)
Headlamp Wipers (p.602)
Rear Window Wiper (p.603)
Windscreen Washers (p.604)
Headlamp Washer (p.605)
Rear Window Washer (p.606)
Horn (p.607)
Horn - Compressor (p.609)
Horn - Modulator (p.611)
Relays - Fuses (p.612)
Electronic Equipment (p.615)
Pressure Switches - Temperature Switches (p.617)
Temperature Switches (p.619)
Aerial - Loudspeaker - Suppressing (p.621)
GROUP 6 (p.623)
Table Of Picture (p.624)
Engine Suspension (p.627)
Fuel Pump And Piping (p.630)
Fuel Piping (p.634)
Fuel Filter (p.640)
Fuel Fiter - Vacuum Switch (p.641)
Electric Petrol Pump - Filter (p.644)
Fuel Tank - Gauge Unit (p.646)
Air Vent Filter (p.651)
Anti-pollution (Fuel Tank) (p.652)
Exhaust (Front) (p.654)
Exhaust (Front) - Securing (p.662)
Exhaust (Rear) (p.664)
Rear Exhaust Securing (p.671)
Water Piping (p.674)
Water Piping Securing (p.683)
Cooler - Water Tank (p.686)
Sealing Fastener (p.688)
Cooler Panel (p.690)
Front Bumper - Buffers (p.691)
Rear Bumper - Buffers (p.693)
Air Conditioner Compressor (p.695)
Condenser - Conditioner Piping (p.704)
Condenser - Conditioner Piping (Brake Anti-Jamming) (p.709)
Screens And Securing (p.710)
Rear Conditioner Unit (p.712)
Casing And Frames (p.714)
Heater Unit (p.715)
Levers And Shutters (p.720)
Temperature Feeler (p.722)
Complementary Heater Unit (p.723)
Complementary Heater Unit - Cock - pipes (p.724)
Complementary Heater Unit - Control (p.725)
Heating And Ventilation Control (p.726)
Heating Duct (p.728)
Ventilation Duct (p.729)
Ventilation Intake (p.730)
Ventilation Filter (p.732)
Console Ventilation Outlet (p.733)
Roof Ventilation Assy (p.734)
CX 81-85 (p.736)
Listing (p.737)
GROUP 7 (p.748)
Table Of Picture (p.749)
Body - Roof Windscreen Frame (p.751)
Central Elements Under Body (p.758)
Body Front Parts (p.760)
Wheel Arches And Wings (p.762)
Front Partition (p.765)
Body - Rear Floor (p.767)
Body - Rear Axle (p.771)
Wheel Arches And Wings (p.772)
Rear Body Parts (p.777)
Partition (p.780)
Sidemember Rails (p.782)
Body Lateral Parts (p.783)
Load Floor - Partition (p.788)
Roof - Roof Glasses (p.789)
Opening Roof (p.791)
Doors (p.794)
Door Locking (p.798)
Glass - Window Winder (p.802)
Rear View Mirror W/O Manual Control (p.805)
Rear View Mirror With Manual Control (p.806)
Rear View Mirror With Electric Setting (p.808)
Outer Rear-View Mirror (p.810)
Boot Door (p.822)
Boot Door And Lock (p.826)
Tailgate - Stretcher Rails (p.828)
Boot Door Lock (p.830)
Stabilisator On Booth Door (p.835)
Bonnet And Lock (p.836)
Front Panel And Grille (p.839)
Central Console (p.841)
Central Console (Broche) (p.845)
External Finishers (p.846)
Finishers (p.847)
Body Lower Finisher - Vinyl Roof Lining (p.849)
Dashboard (p.851)
Glasses F. Windscreeen, Side Panels And Rear Window (p.860)
Glasses F. Tailgate And Partition (p.867)
GROUP 8 (p.868)
Table Of Picture (p.869)
SunVisor (p.871)
Lat. Sun Visor - Int. Drive Mirror - Rear Sun Visor (p.875)
Front Safety Belts (p.877)
Rear Safety Belts (p.879)
Spare Wheel Bracket (p.886)
Accessories Brackets (p.887)
Complete Front Seats (p.888)
Front Seats - Frames (p.889)
Front Seat Support, Raised (p.891)
Front Seat - Padding (p.892)
Front Seat - Trimming (p.893)
Intermediate Seats (p.899)
Rear Bench Seat - Cushion - Squab (p.904)
Rear Bench Seat - Frame - Padding (p.907)
Rear Bench Seat - Trimmings (p.909)
Complete Folding Bench (p.917)
Back Squab Folding (p.918)
Folding Squab Securing (p.920)
Folding Bench Cushion (p.922)
Cushion Securing (p.925)
Rear Folding Bench Seat - Frames - Padding (p.926)
Rear Folding Bench Seat - Trimmings (p.928)
Seat F. Attendant (p.930)
Seat F. Patient (p.932)
Front Headrest And Trimmings (p.934)
Front Partition Trimmings (p.939)
Linings - Carpets (p.944)
Rear Carpet - Trimming (p.948)
Lateral Trimmings (p.954)
Body And Roof Trimmings (p.955)
Opening Roof Trimmings (p.971)
Partition Trimmings (p.974)
Front Door Panels (p.975)
Rear Door Panels (p.980)
← Prev
Page 963 of 985
Next →
