PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

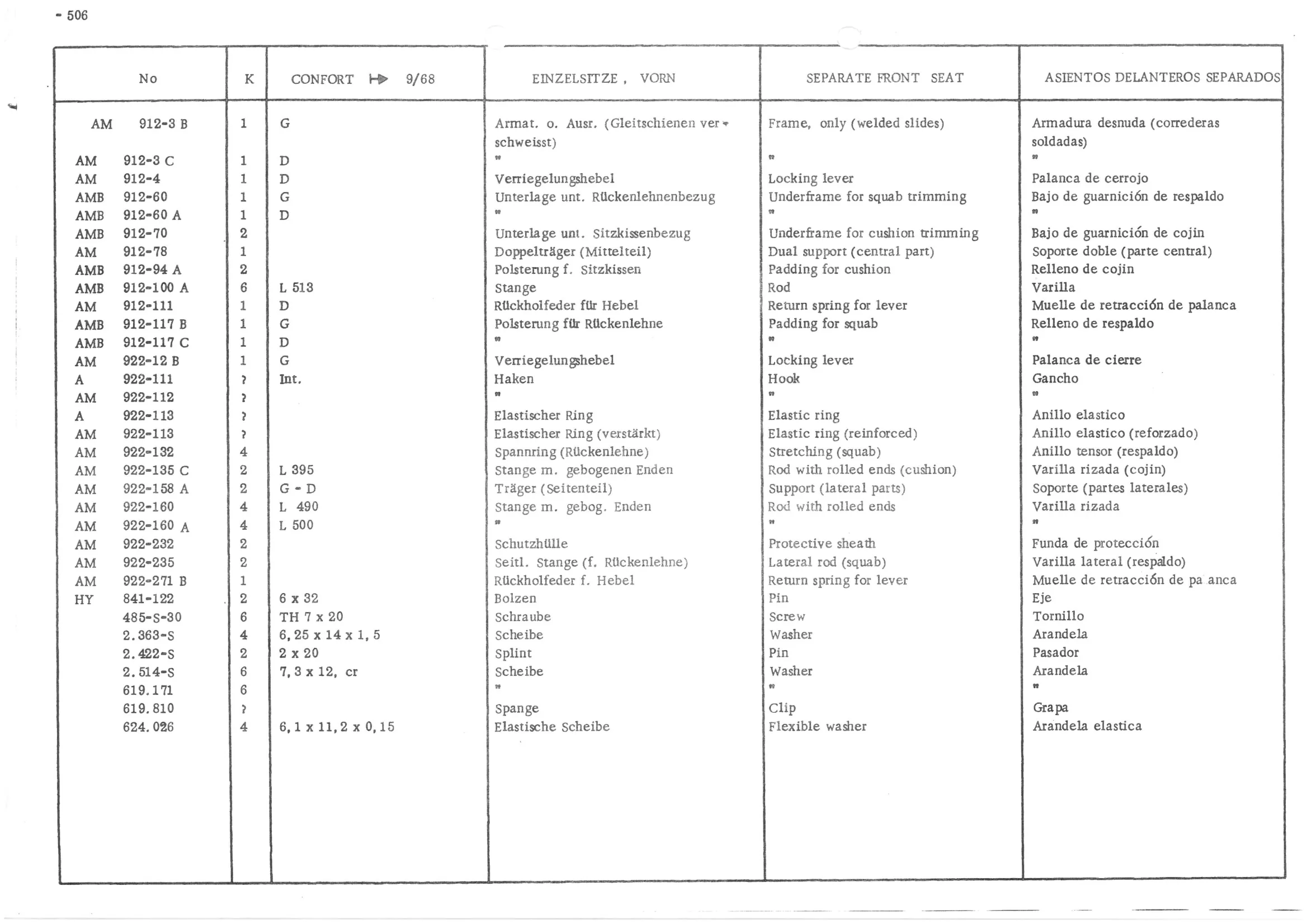

SEPARATE FRONT SEAT | (welded slides) Frame, only | Locking lever | Underframe for squab trimming | Dual (central part) support | Padding for cushion | Rod | Return spring for lever | Padding for squab | Locking lever | Hook | Elastic ring | (reinforced) Elastic ring | Stretching (squab) | Rod with rolled ends (cushion) | Support (lateral parts) | Rod with rolled ends | sheath Protective | Lateral rod (squab)
