PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

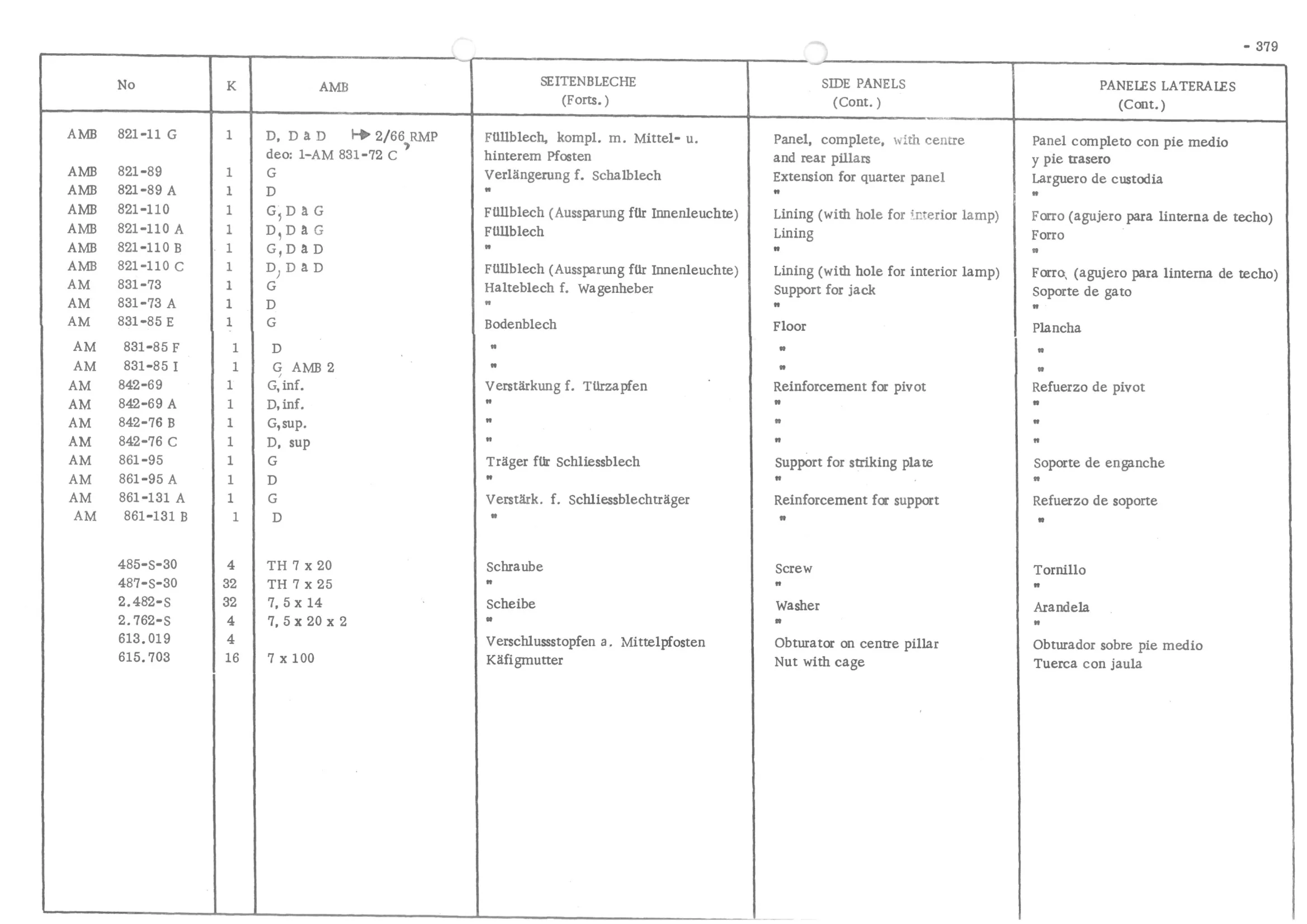

SIDE PANELS | Panel, complete, with centre | and pillars rear | for Extension panel quarter | Lining (with hole for interior lamp) | Lining | Lining (with hole for interior lamp) | for jack Support | Floor | Reinforcement for pivot | for striking plate Support | Reinforcement for support | Screw | Washer | Nut with cage
