PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

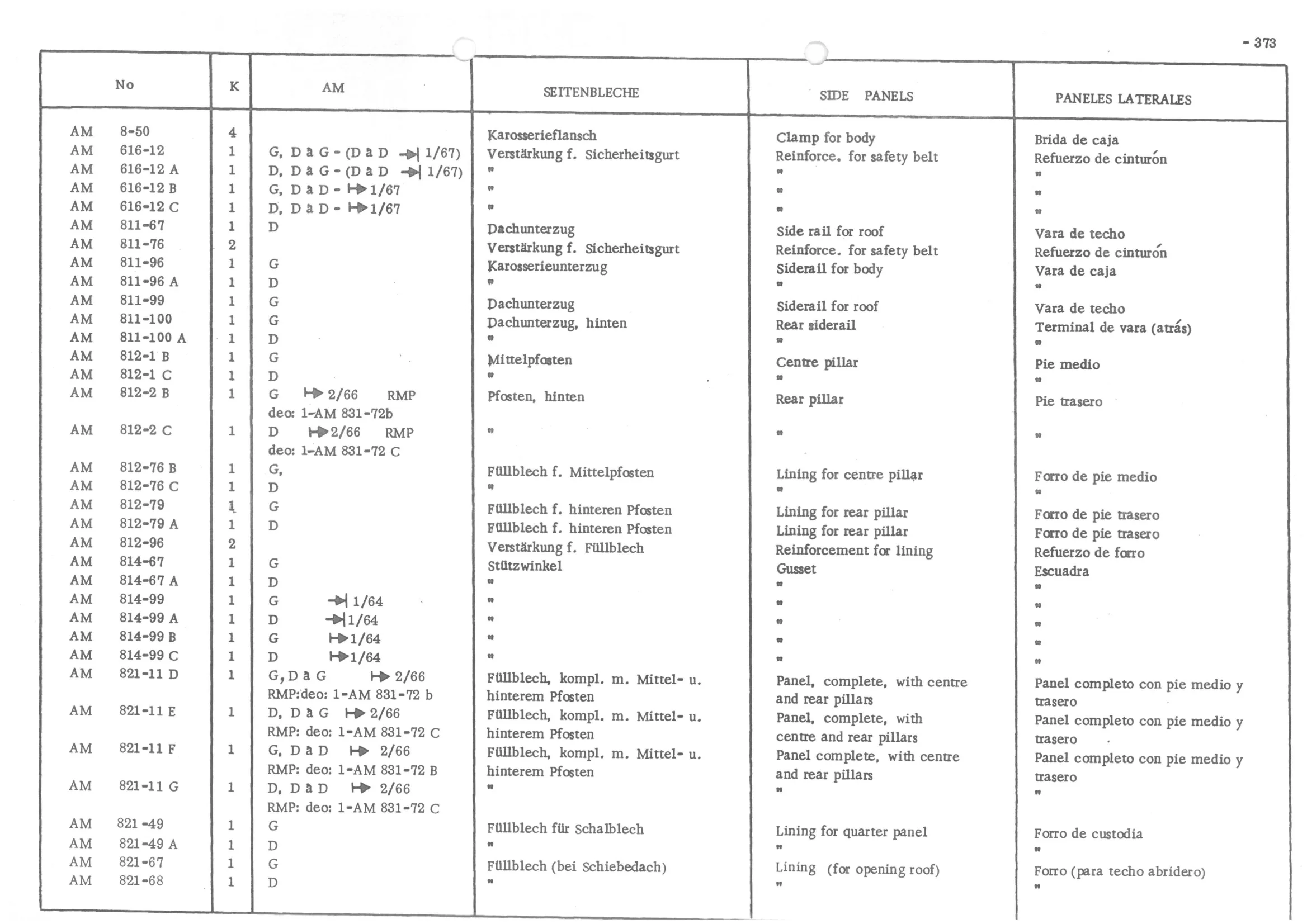

SIDE PANELS | Clamp for body | Reinforce. for safety belt | Side rail for roof | Reinforce. for safety belt | Siderail for body | Siderail for roof | Rear pillar | Lining for pillar centre | Lining for pillar rear | Lining for pillar rear | Reinforcement for lining | Gusset | Panel, complete, with centre | and pillars rear | Panel, complete, with | and pillars centre rear | Panel complete, with centre
