PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

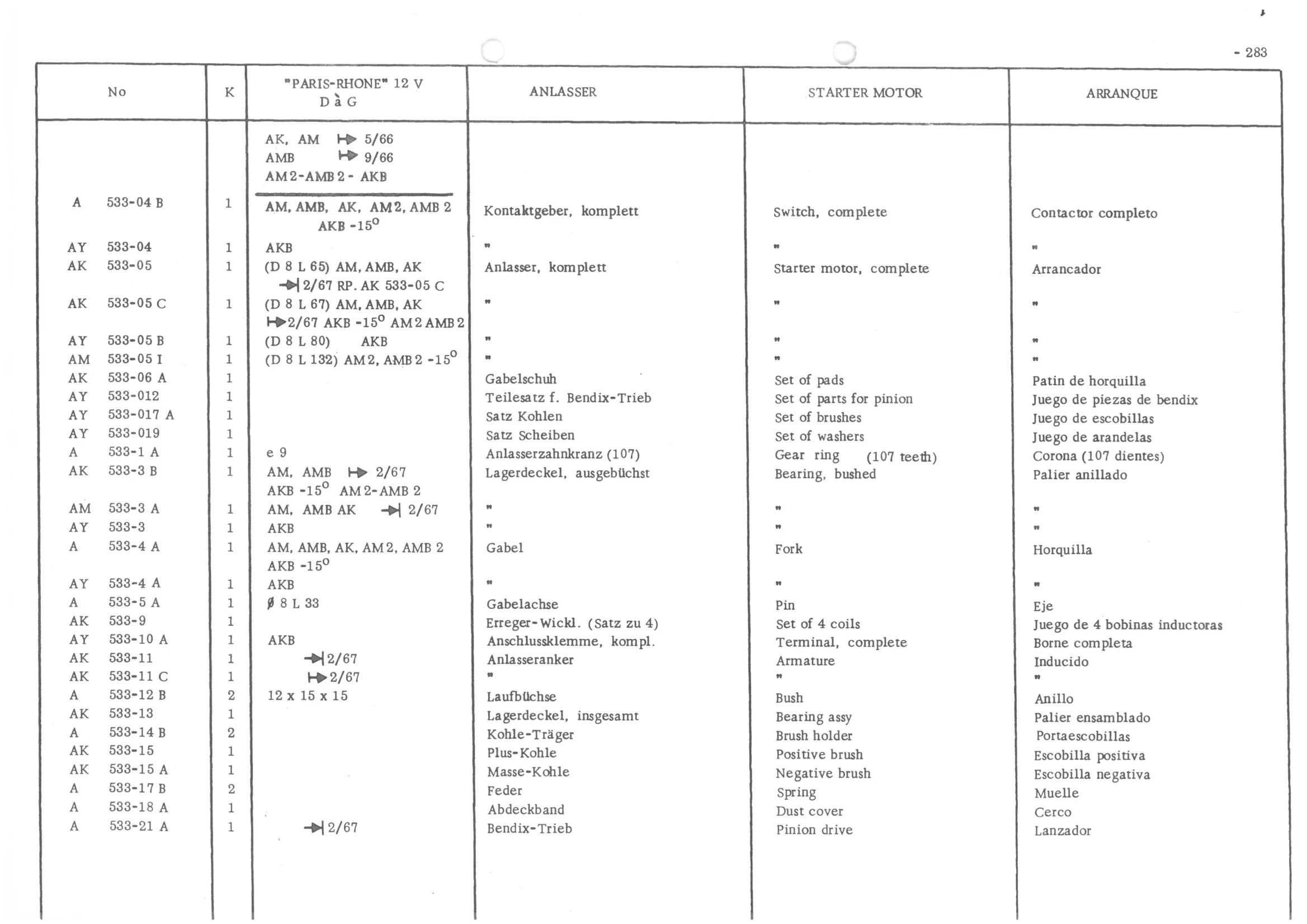

STARTER MOTOR | Switch, complete | Starter motor, complete | of Set pads | Set of for pinion parts | of brushes Set | of washers Set | Gear ring (107 teeth) | bushed Bearing, | Fork | Pin | of coils Set 4 | Terminal, complete | Armature | Bush | Brush holder | Positive brush | brush Negative | Spring | Dust cover | Pinion drive
