PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

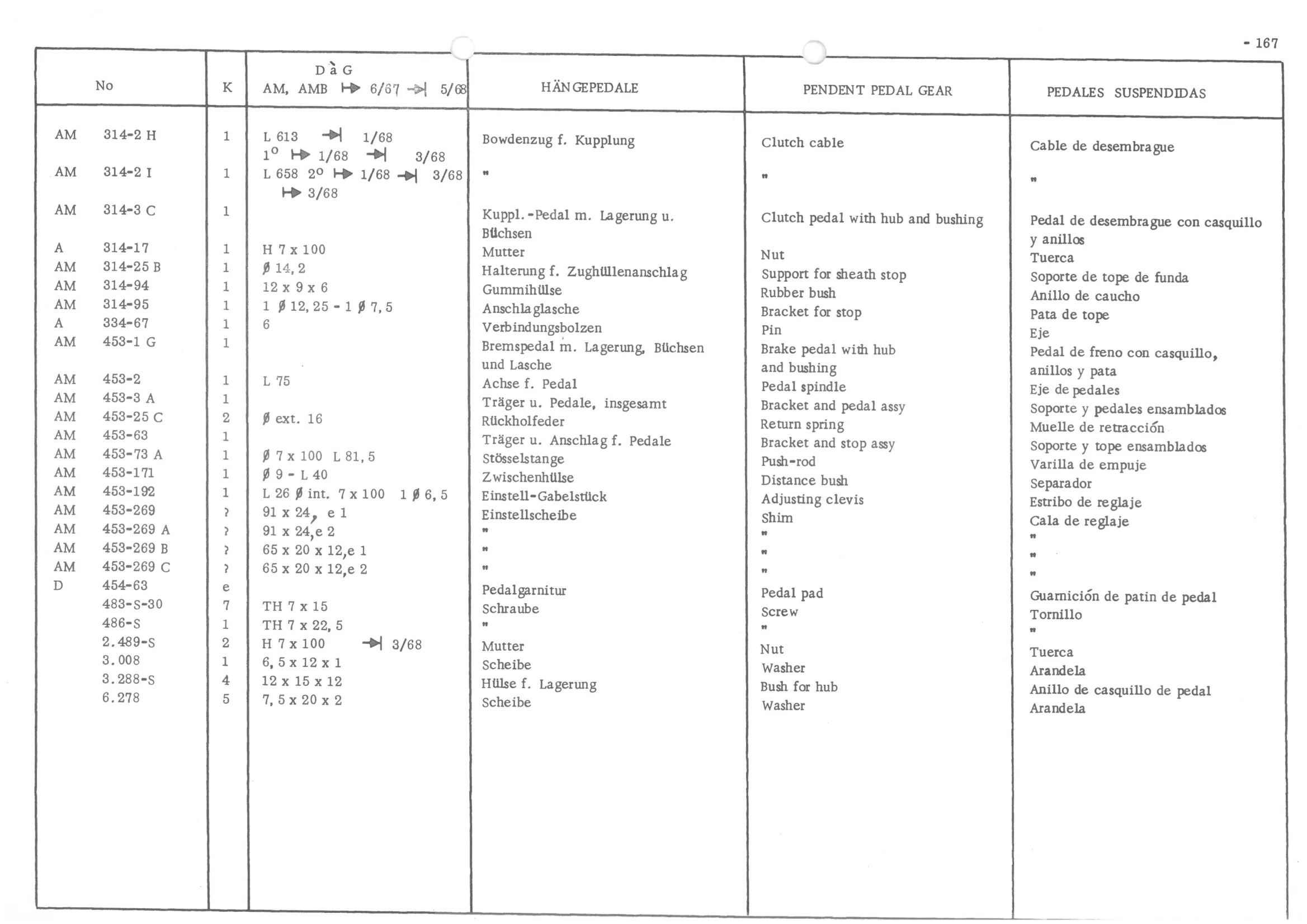

PENDENT PEDAL GEAR | Clutch cable | Clutch pedal with hub and bushing | Nut | Support for sheath stop | Rubber bush | Bracket for stop | Pin | Brake pedal with hub | and bushing | Pedal spindle | Bracket and pedal assy | Return spring | Bracket and stop assy | Distance bush | Adjusting clevis | Washer | Bush for hub | Washer
