REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.244)

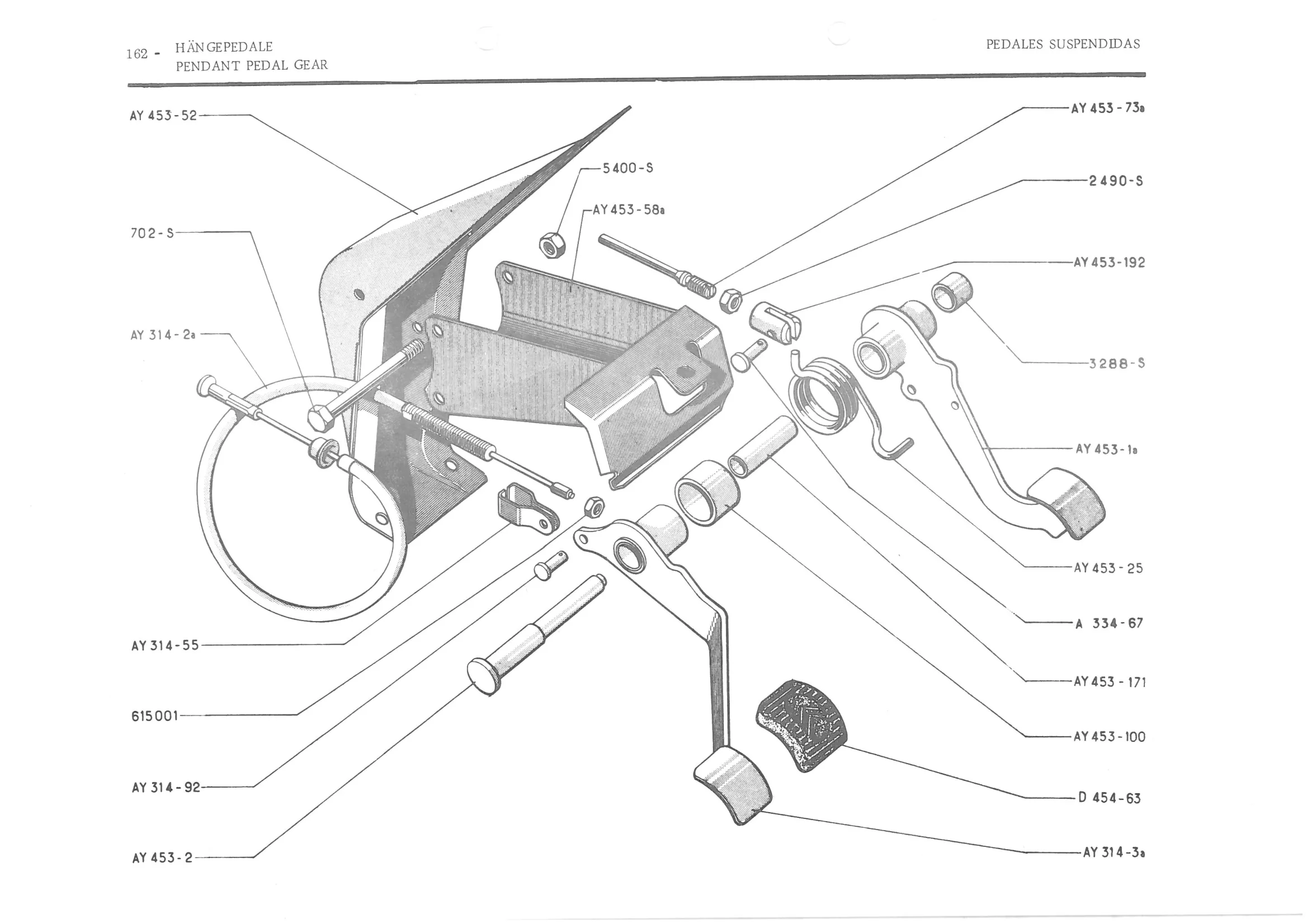

PENDENT PEDAL GEAR | Clutch cable | Clutch pedal with hub and bushing | Clevis | Clevis pin | Bracket and pedals assy | Brake pedal with hub and bushing | Pedal pin | Return spring | Bracket for pedal gear | Bracket for pedal | Push rod | Bush for spring | Distance bush | Adjusting clevis | Pedal pad | Screw | Lock nut | Bush | Nut
