PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

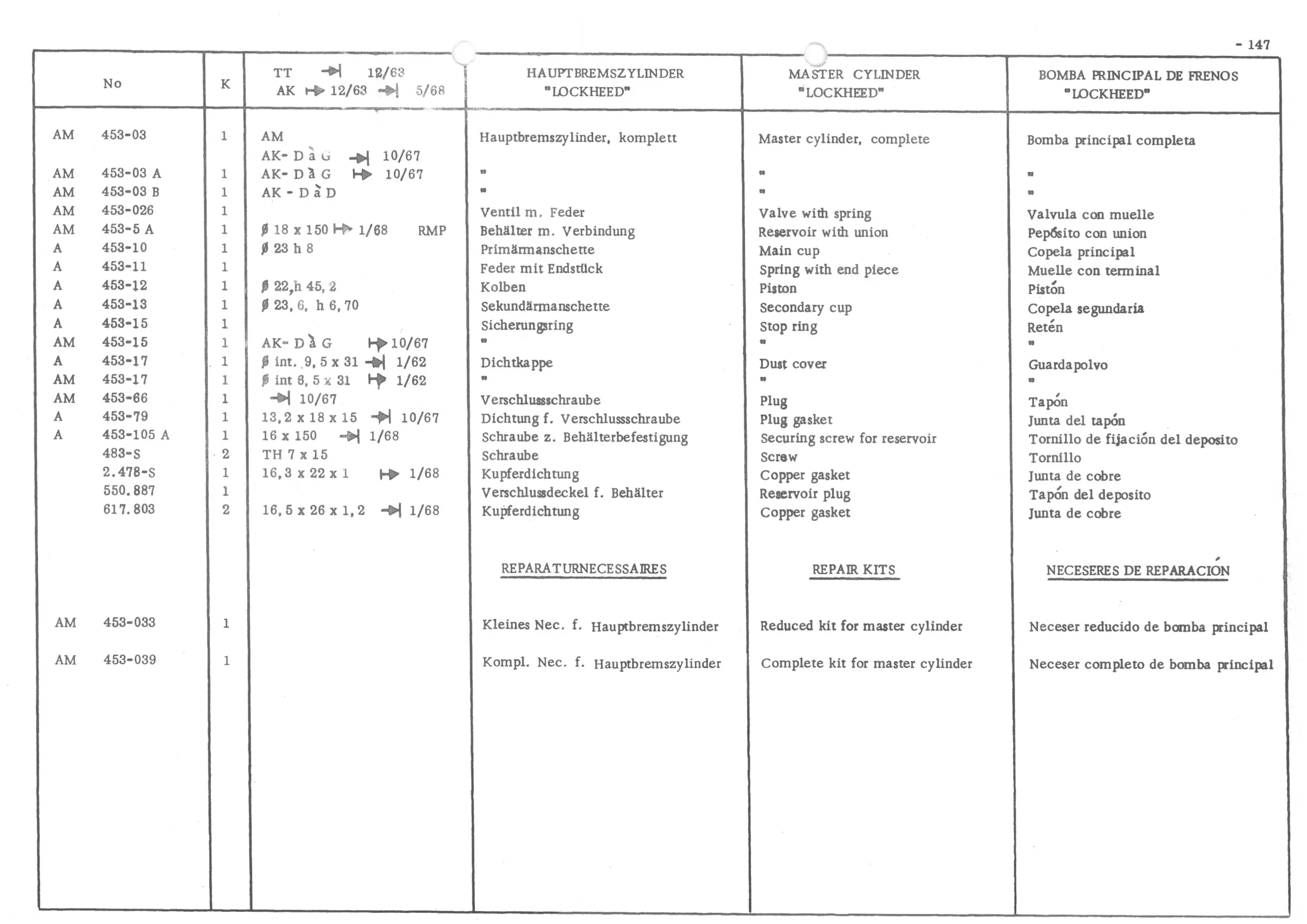

MASTER CYLINDER | Master cylinder, complete | Valve with spring | with Reservoir union | Main cup | Spring with end piece | Piston | Secondary cup | Stop ring | Dust cover | Plug | Plug gasket | for Securing reservoir screw | Screw | Copper gasket | Reservoir plug | gasket Copper | REPAIR KITS | Reduced kit for master cylinder | Complete kit for cylinder master
