PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

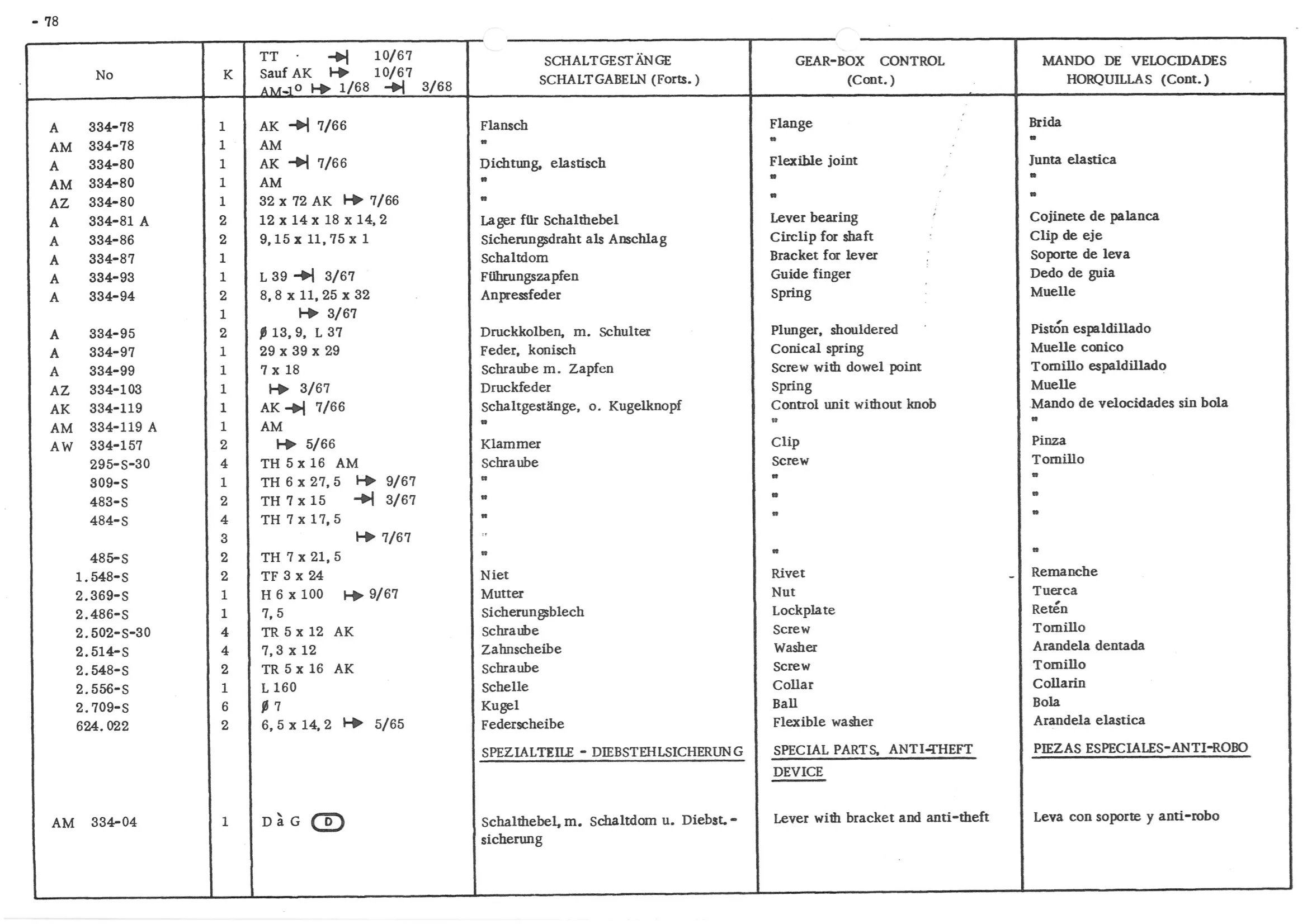

GEAR-BOX CONTROL | Flange | Flexible joint | Lever bearing | for shaft Circlip | Bracket for lever | Guide finger | Spring | Plunger, shouldered | Conical spring | Screw with dowel point | Spring | Control unit without knob | Clip | Rivet | Nut | Screw | Washer | Screw | Collar | Ball | Flexible washer | SPECIAL PARTS, ANTI-THEFT | DEVICE | with bracket and anti-theft Lever
