PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

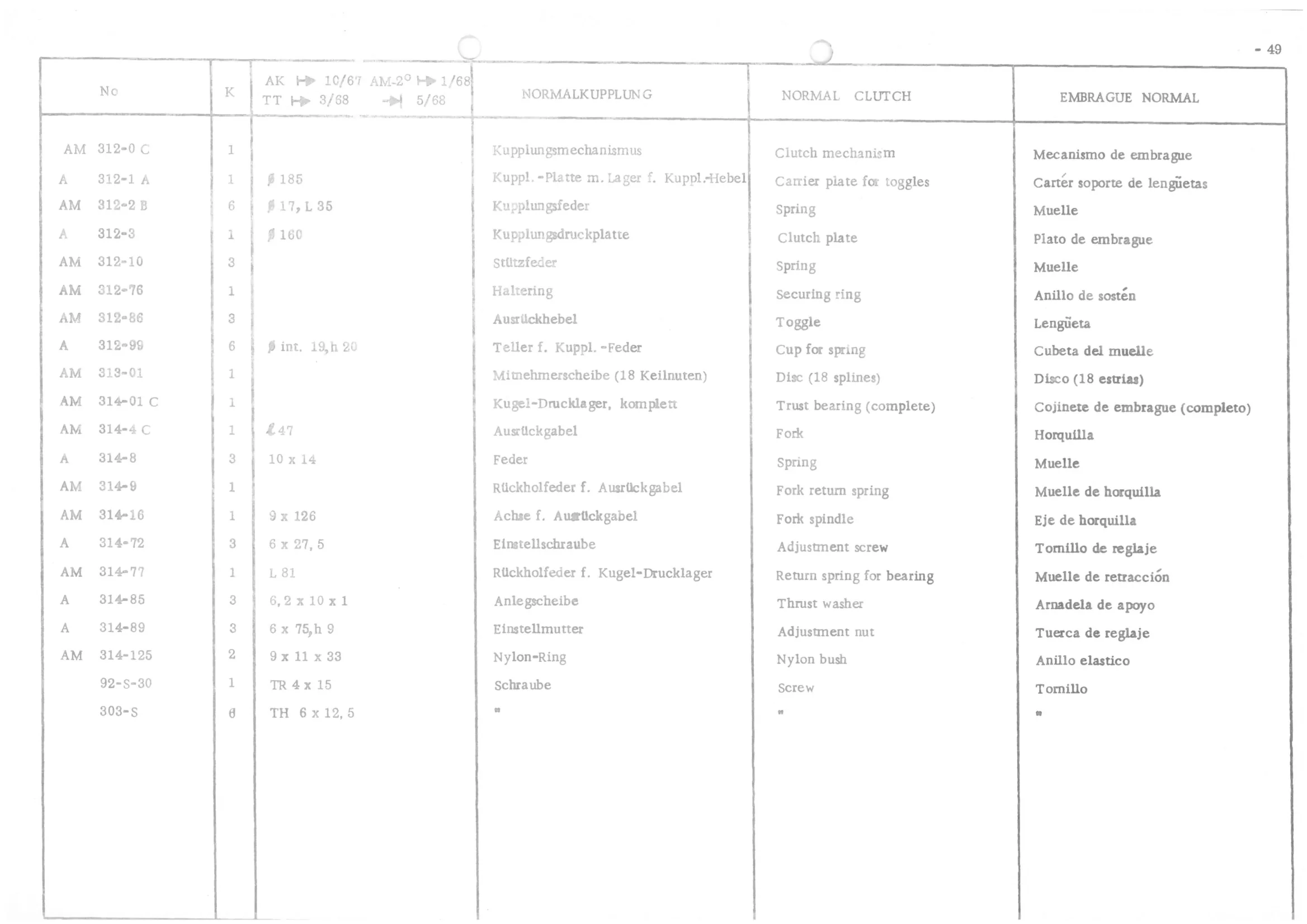

NORMAL CLUTCH | Clutch mechanism | for Carrier plate toggles | Spring | Clutch plate | Spring | Securing ring | Toggle | Cup for spring | Disc (18 splines) | Trust bearing (complete) | Fork | Spring | Fork spring retum | Fork spindle | Adjustment screw | Return spring for bearing | Thrust washer | Adjustment nut | Nylon bush | Screw
