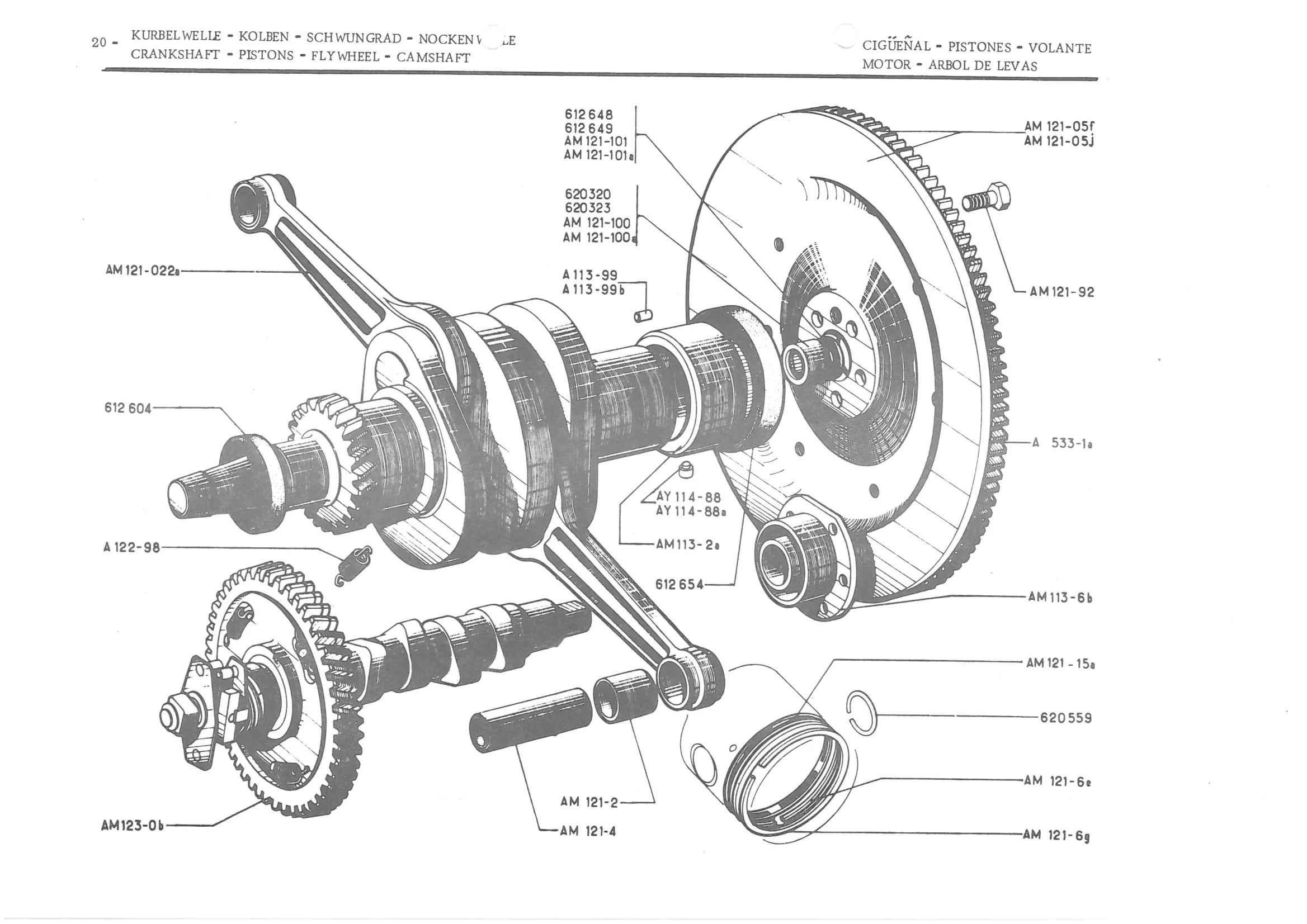

REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.103)
CAMSHAFT | NOTE: The pistons supplied are not | separately. cylinder and See piston | Bearing for crankshaft | for camshaft Bearing | Dowel | Flywheel (normal clutch) | (centrifugal clutch) | Crankshaft with connecting rods | Split bush | Gudgeon pin | Scraper ring | Sealing ring, chromed | Compression ring | Screw | Bronze bush | Sealing bush | Spring | Camshaft | Sealing ring | Needle bearing
