Part Descriptions on This Page (English)

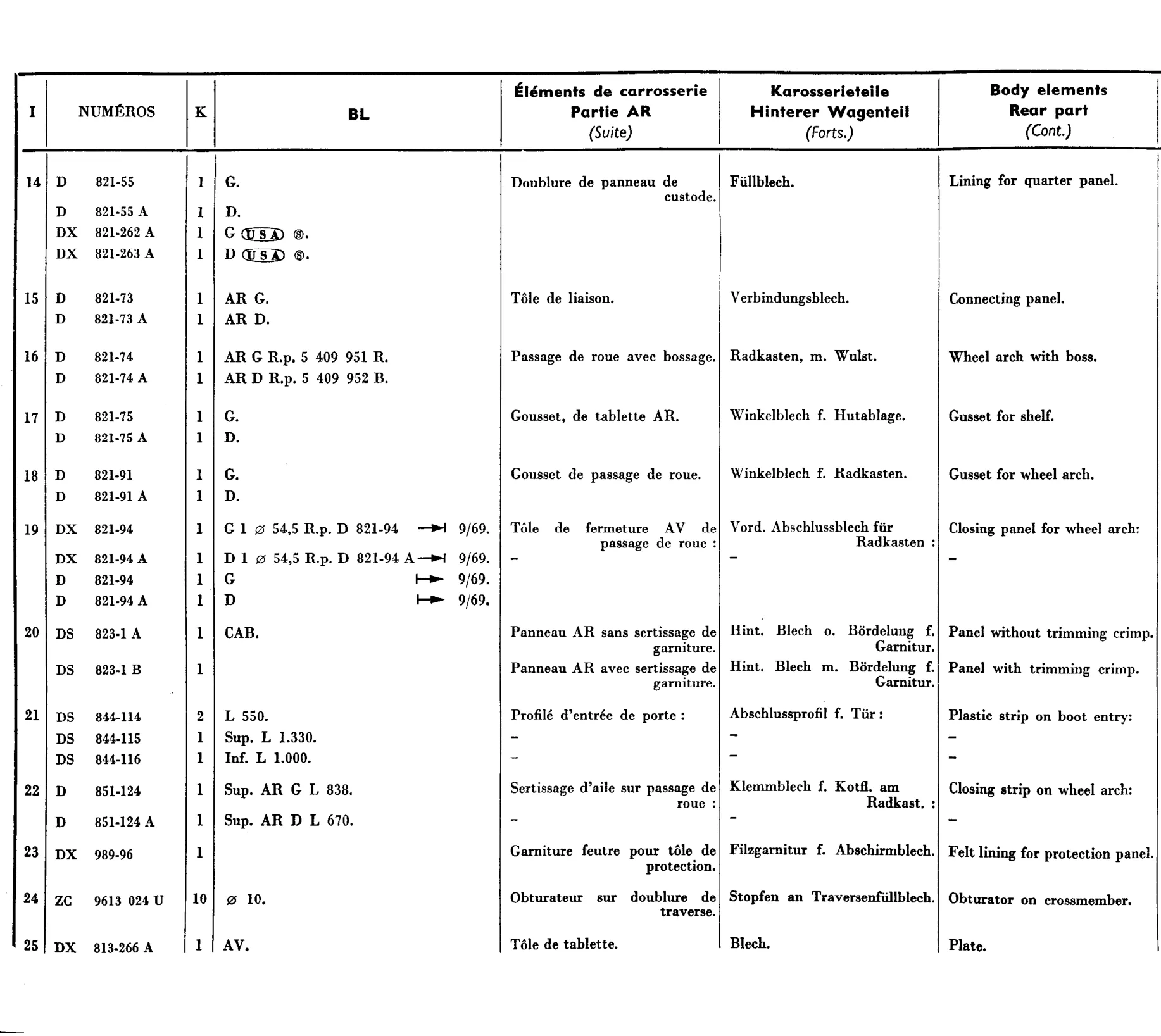

Body elements Rear part (Cont.) - | Lining for quarter panel. | Connecting panel. | Wheel arch with boss. | Gusset for shelf. | Gusset for wheel arch. | Closing panel for wheel arch: : | f. Panel without trimming crimp | f. Panel with trimming crimp. | Plastic strip on boot entry: | Closing strip on wheel arch: : | Felt lining for protection panel | Obturator on crossmember. | Plate.
