Part Descriptions on This Page (English)

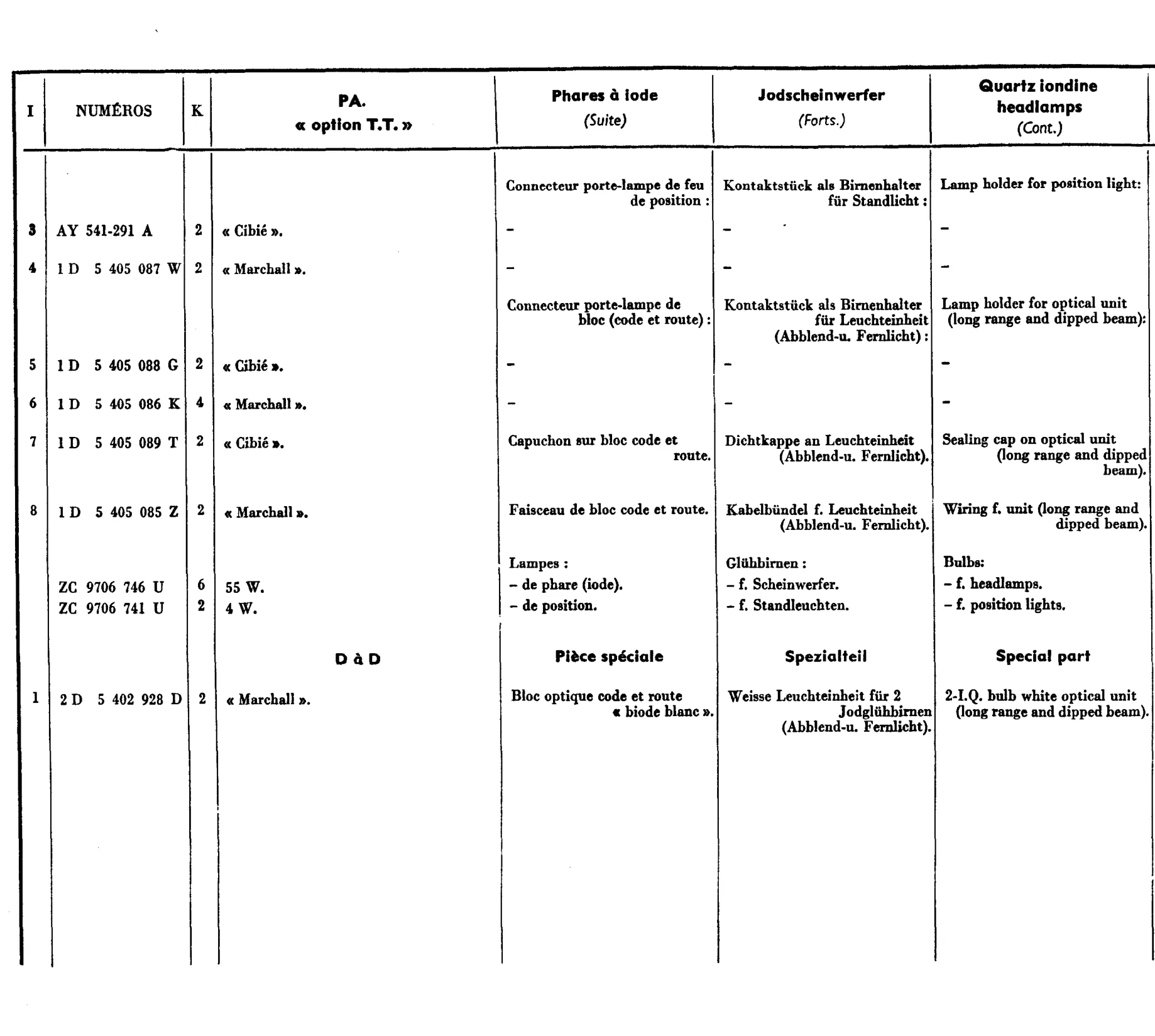

Quartz iondine headlamps (Cont.) | Lamp holder for position light: : | . | Lamp holder for optical unit (long range and dipped beam) | : | Sealing cap on optical unit (long range and dippec beam) | Wiring f. unit (long range and dipped beam] | Bulbs: | - f. headlamps. | - f. position lights. | Special part | 2-I.Q. bulb white optical unit (long range and dipped beam: 1
