Part Descriptions on This Page (English)

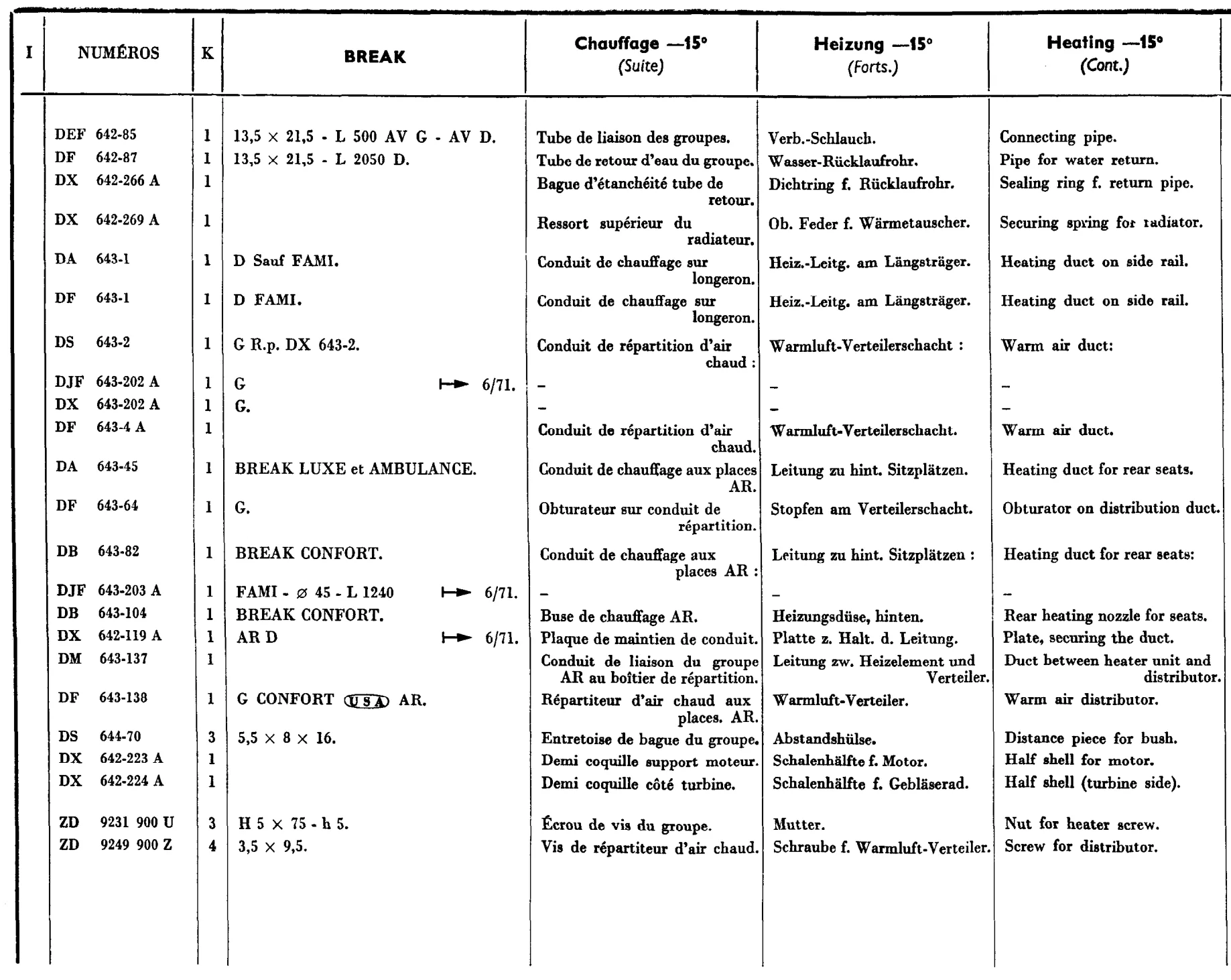

Heating -15O | (Cont.) | Connecting pipe. | Pipe for water return. | Sealing ring f. return pipe. | Securing spring foor radiator. | Heating duct on side rail. | Heating duct on side rail. | : Warm air duct: | Warm air duct. | Heating duct for rear seats. | Obturator on distribution duct | : Heating duct for rear seats: | Rear heating nozzle for seats. | Plate, securing the duct.
