Part Descriptions on This Page (English)

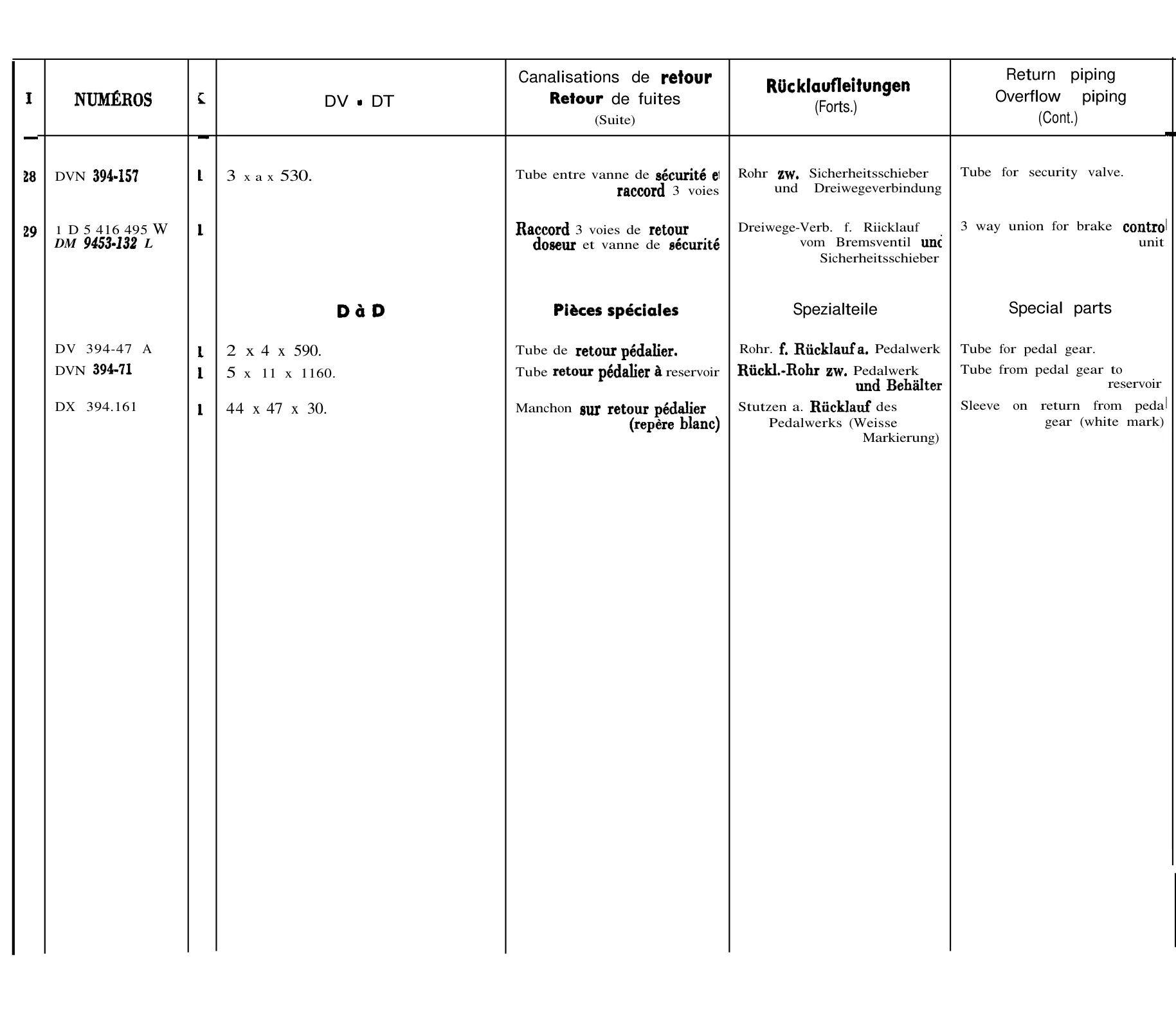

Return piping Overflow piping (Cont.) - | Tube for security valve. | 3 way union for brake contra I unt unit | Special parts | Tube for pedal gear. | Tube from pedal gear to reservoir I Sleeve on return from peda gear (white mark) | i
