Part Descriptions on This Page (English)

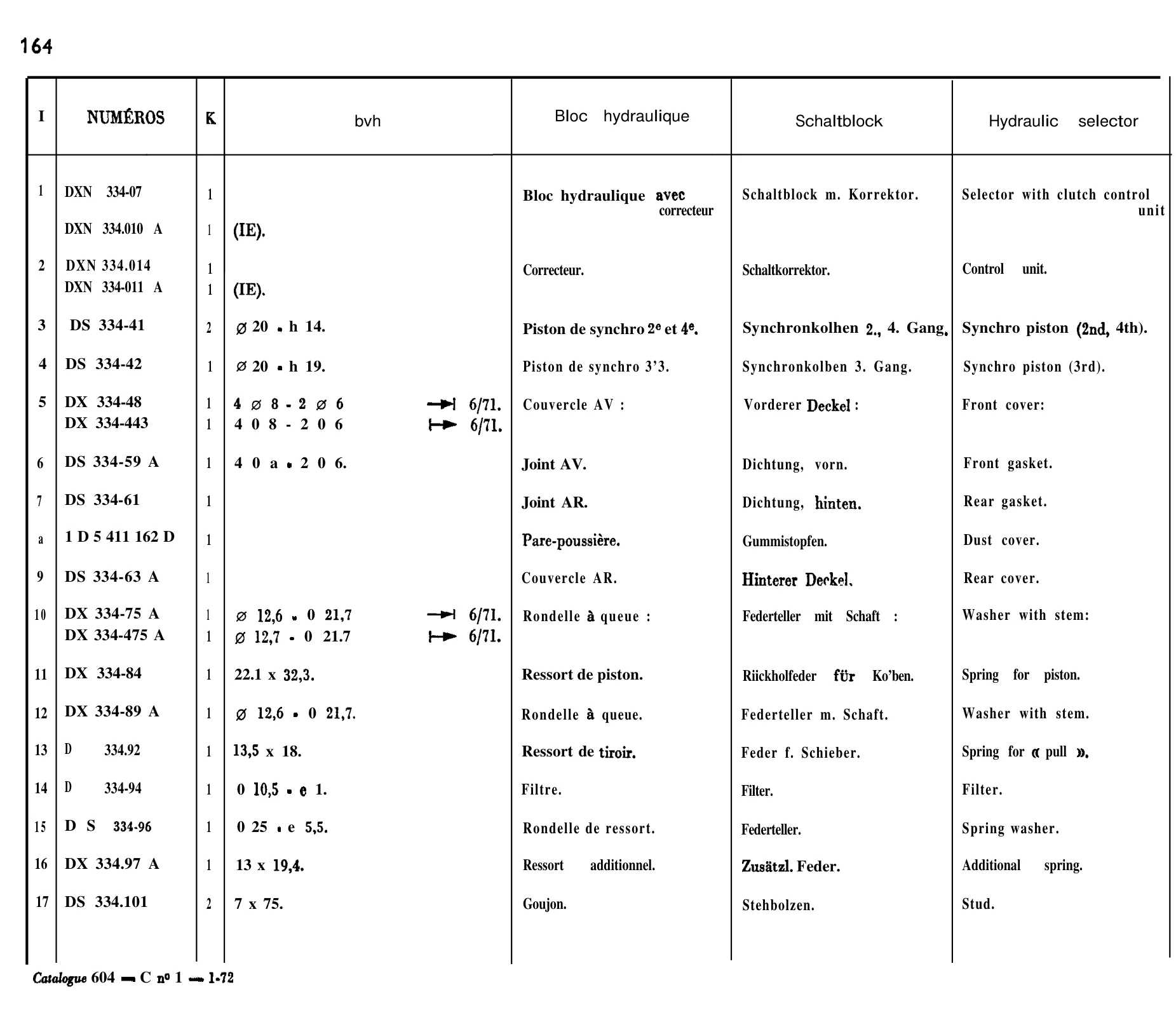

Hydraulic selector | Selector with clutch control unit | Control unit. | . Synchro piston (2nd, 4th). | Synchro piston (3rd). | Front cover: | Front gasket. | Rear gasket. | Dust cover. | Rear cover. | Washer with stem: | Spring for piston. | Washer with stem. | Spring for e pull n. | Filter. | Spring washer. | Additional spring. | Stud.
