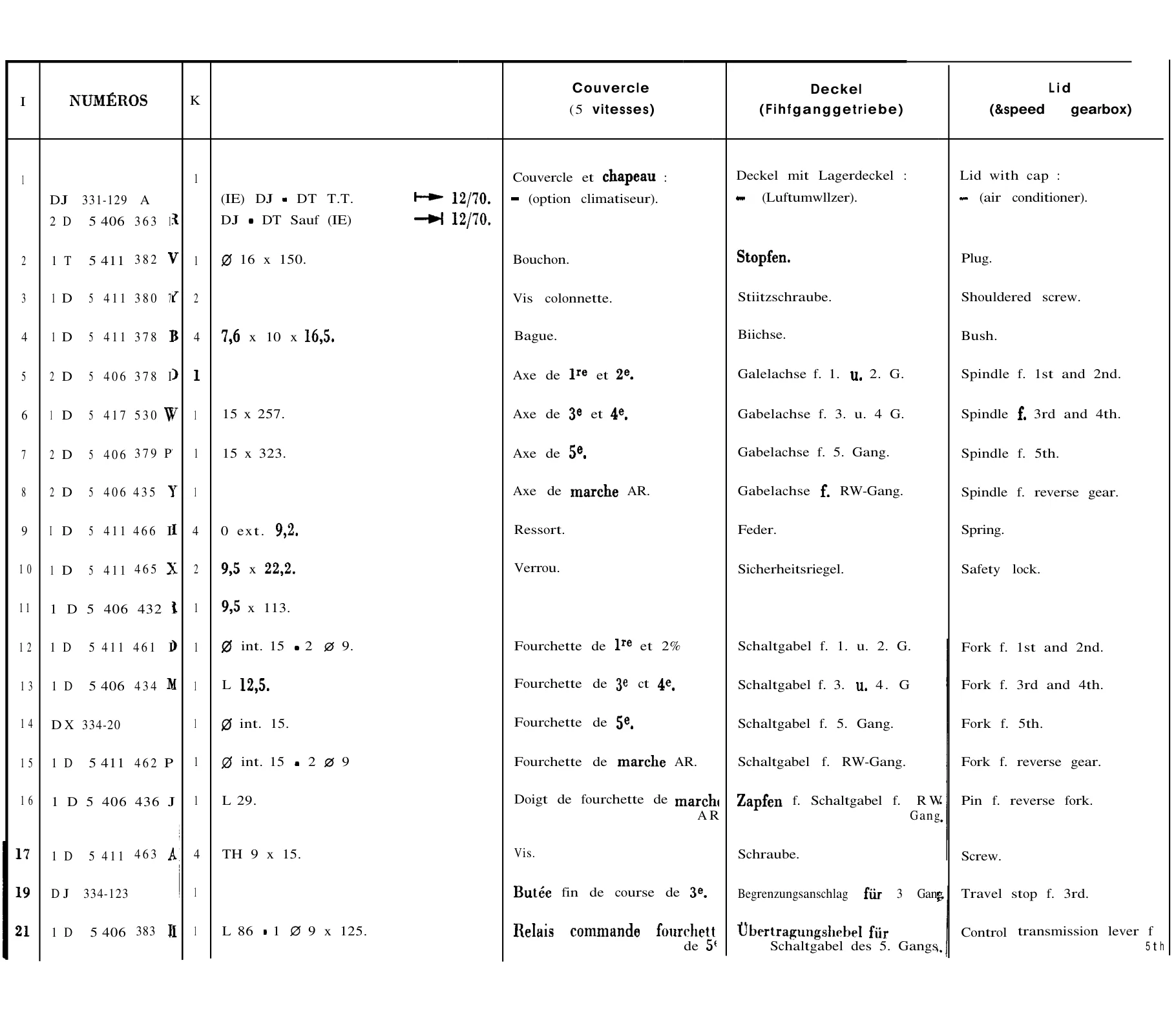

Part Descriptions on This Page (English)
L i d | (&speed gearbox) | Lid with cap : | - (air conditioner). | Plug. | Shouldered screw. | Bush. | Spindle f. 1st and 2nd. | Spindle f. 3rd and 4th. | Spindle f. 5th. | Spindle f. reverse gear. | Spring. | Safety lock. | Fork f. 1st and 2nd. | Fork f. 3rd and 4th. | Fork f. 5th. | Fork f. reverse gear. | Pin f. reverse fork. | Screw. | Travel stop f. 3rd. | Control transmission lever f 5 t h
