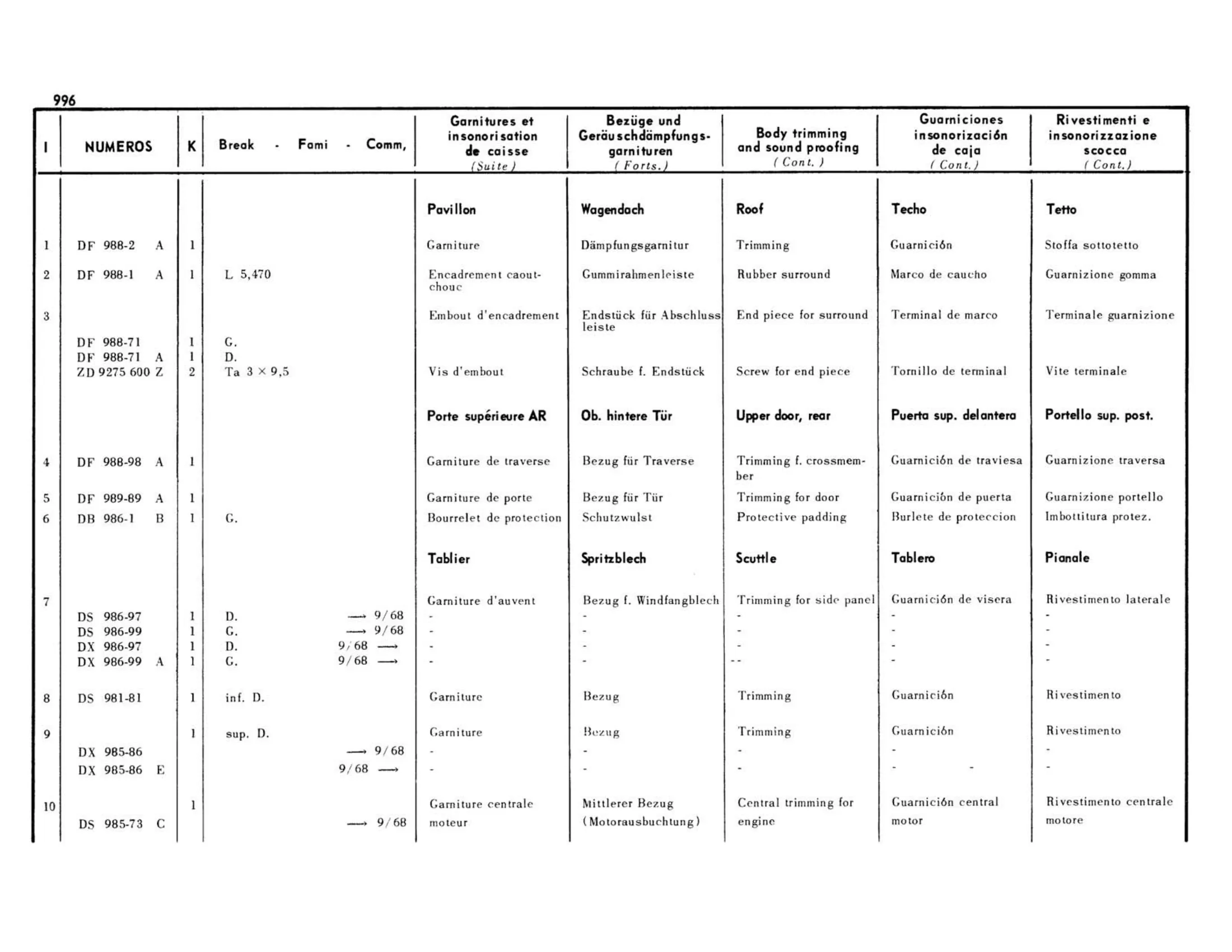

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Body trimming and sound proofing (Cont. ) | Roof | Trimming | Rubber surround | End piece for surround | Screw for end piece | door, Upper rear | Trimming f. crossmem- | ber | Trimming for door | padding Protective | Scuttle | Trimming for side panel | Trimming | Trimming | Central trimming for | engine
