PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

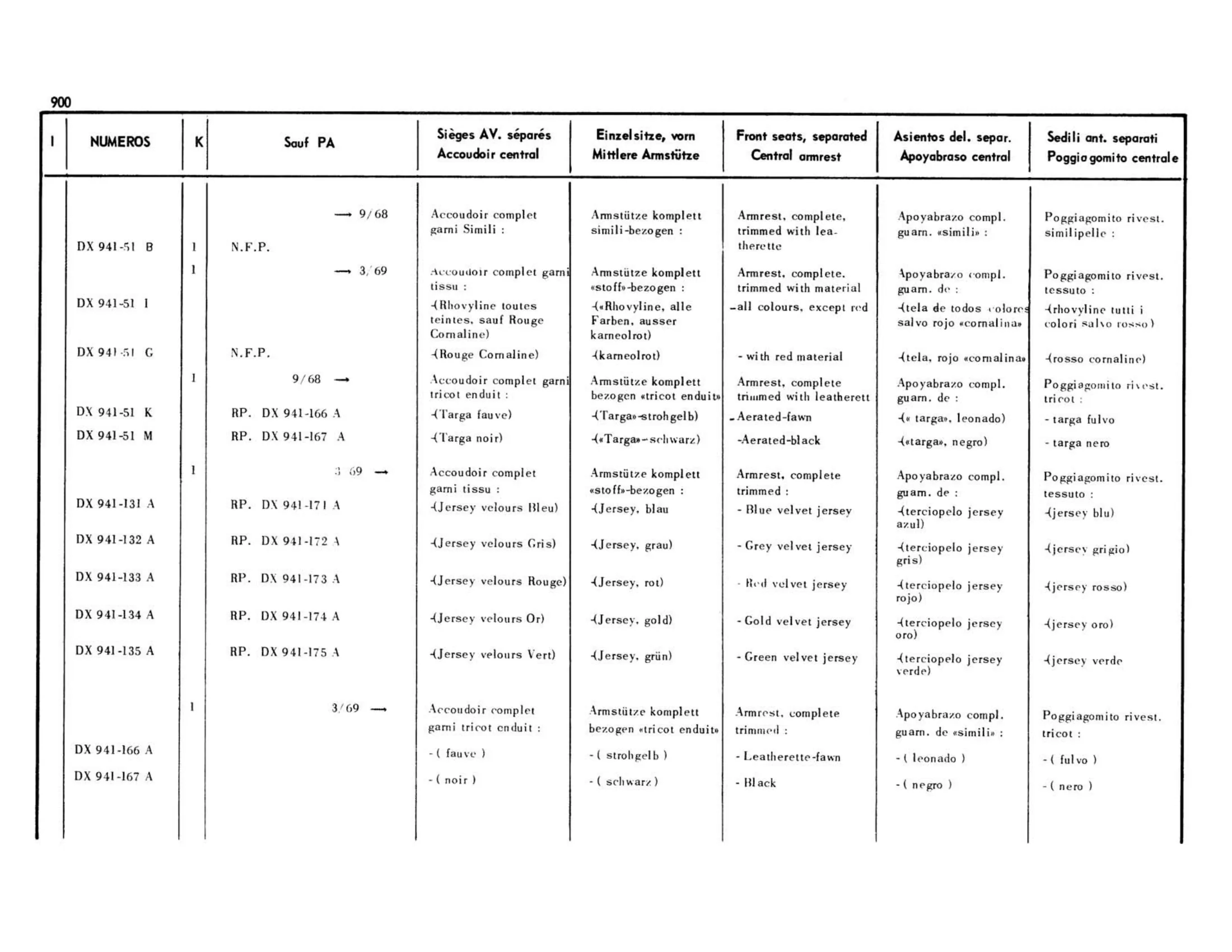

Front separated seats, | Central armrest | Armrest, complete, trimmed with lea- | therette | Armrest, complete. trimmed with material | -all colours, red except | with red material - | Armrest, complete triumed with leatherett | ~Aerated-fawn | -Aerated-black | Armrest, complete | trimmed : | Blue velvet jersey - | Grey velvet jersey - | Red velvet jersey | -Gold velvet jersey | Green velvet jersey -
