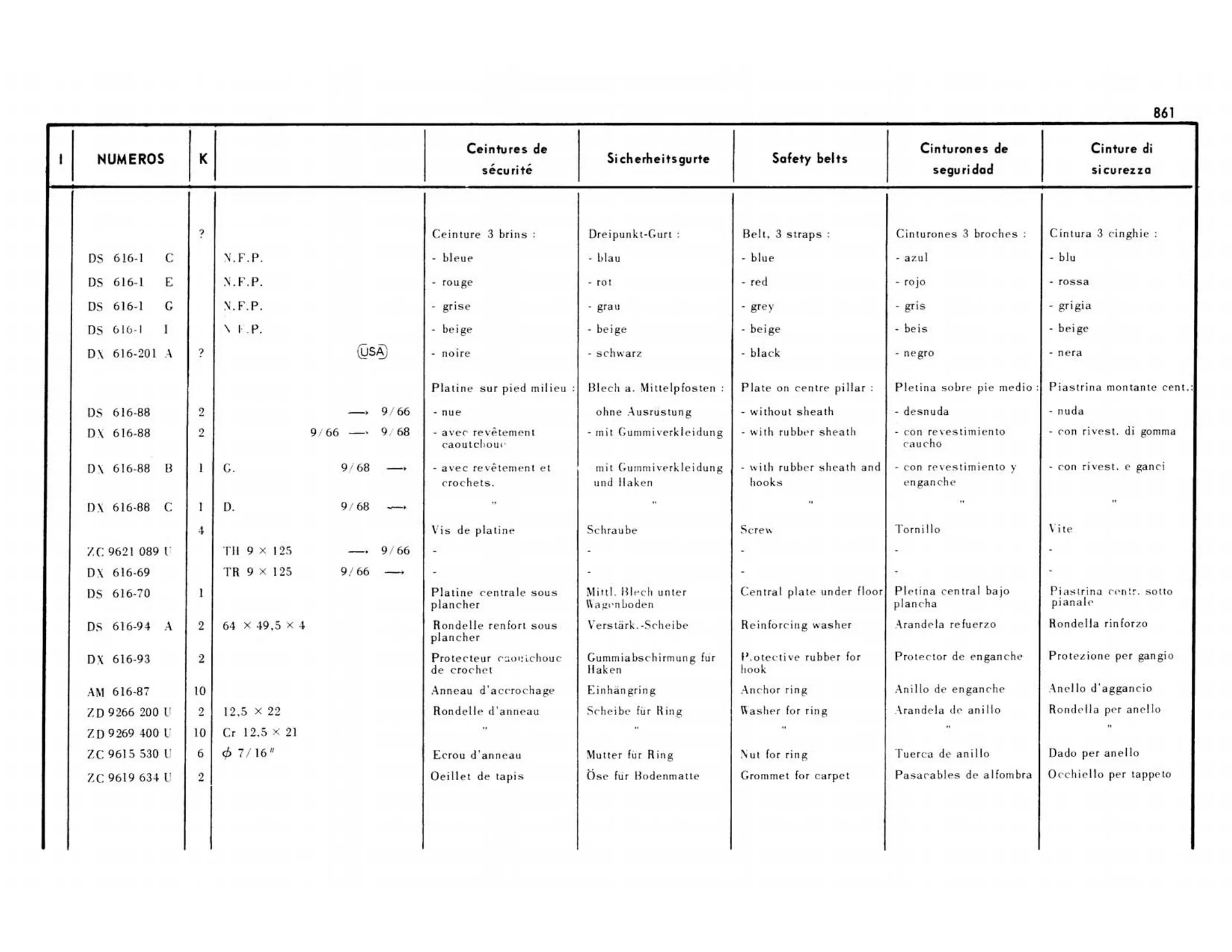

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Safety belts | Belt, 3 straps : | blue - | red - | - grey | beige - | black ~ | Plate pillar : on centre | without sheath - | with rubber sheath - | with rubber sheath and + | hooks | Screw | Central plate under floor | Reinforcing washer | P.otective rubber for hook | Anchor ring | Washer for ring | for Nut ring | Grommet for carpet
