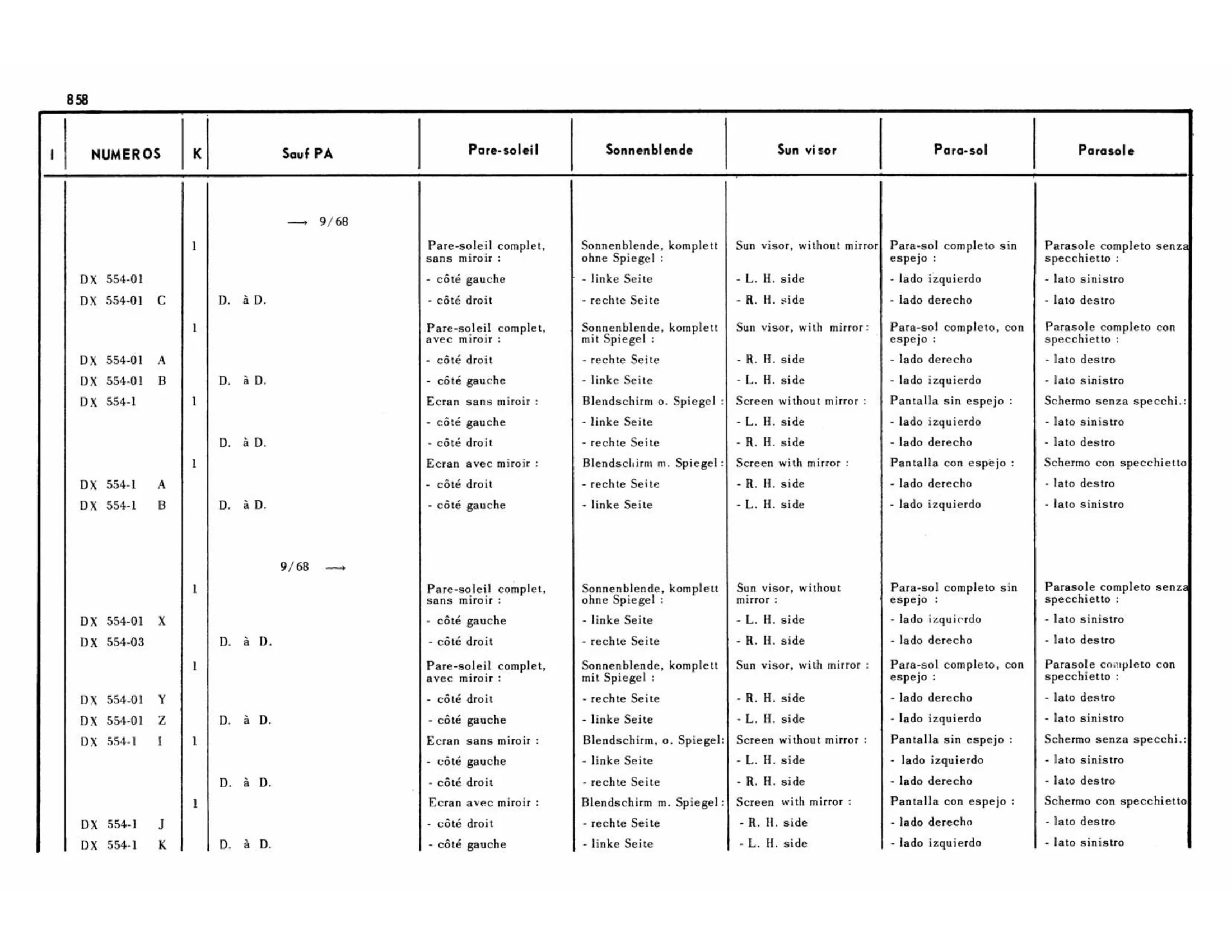

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Sun visor | without Sun visor, mirror] | L. H. side - | -R.H. side | Sun visor, with mirror: | -R. H. side | -L. H. side | Screen without mirror : : | -L. H. side | R. H. side - | : Screen with mirror : | -R. H. side | -L. H. side | Sun visor, without mirror : | L. H. side - | R. H. side - | Sun with visor, mirror : | -R.H. side | -L. H. side | Screen without mirror : | -L. H. side | R. H. side -
