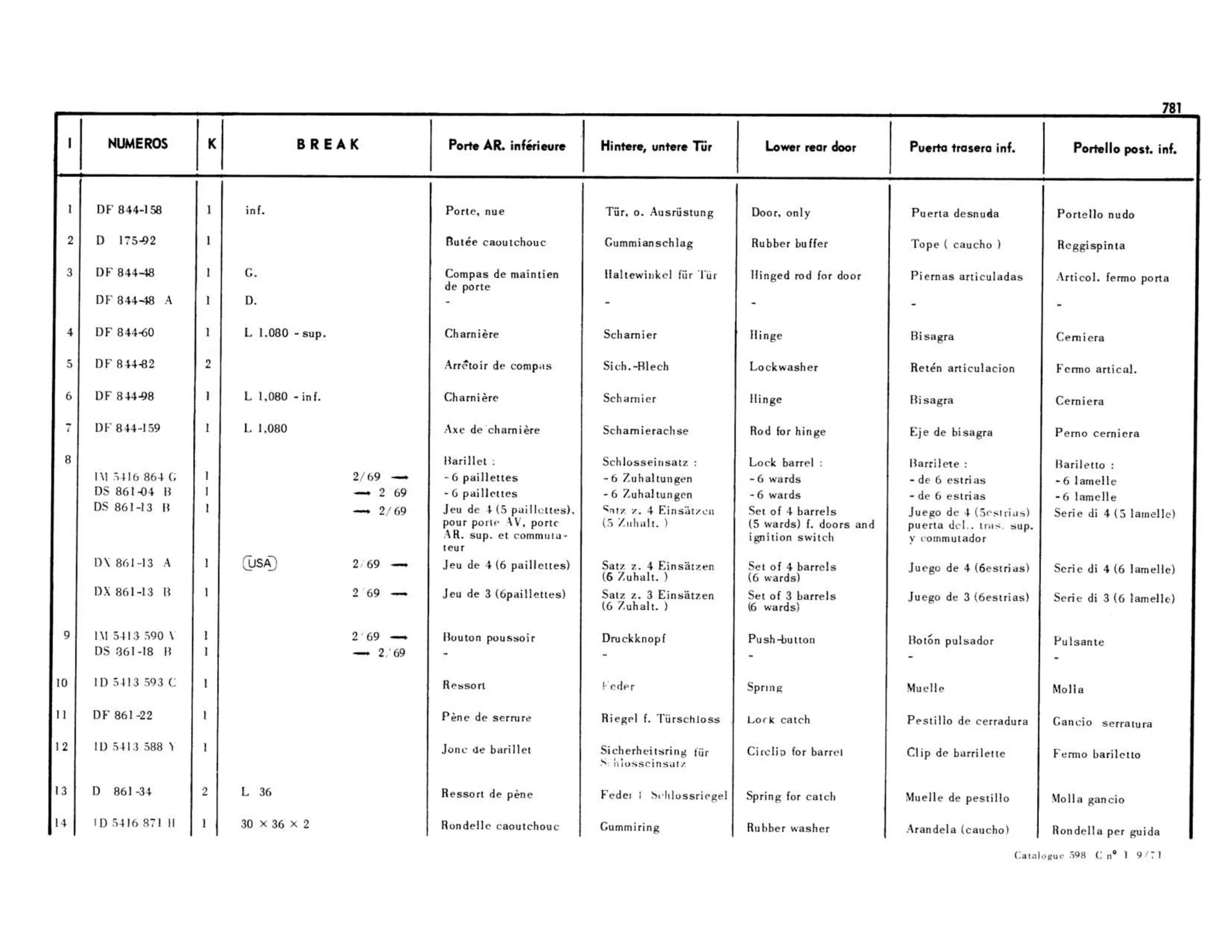

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Door, only | Rubber buffer | Hinged rod for door | Hinge | Lockwasher | Hinge | Rod for hinge | Lock barrel : | -6 wards | -6 wards | Set of 4 barrels (5 wards) {. doors and | ignition switch | Set of 4 barrels (6 wards) | Set of 3 barrels (6 wards) | Push-button | Spring | catch Lock | Circlip for barret | Spring for catch | Rubber washer
