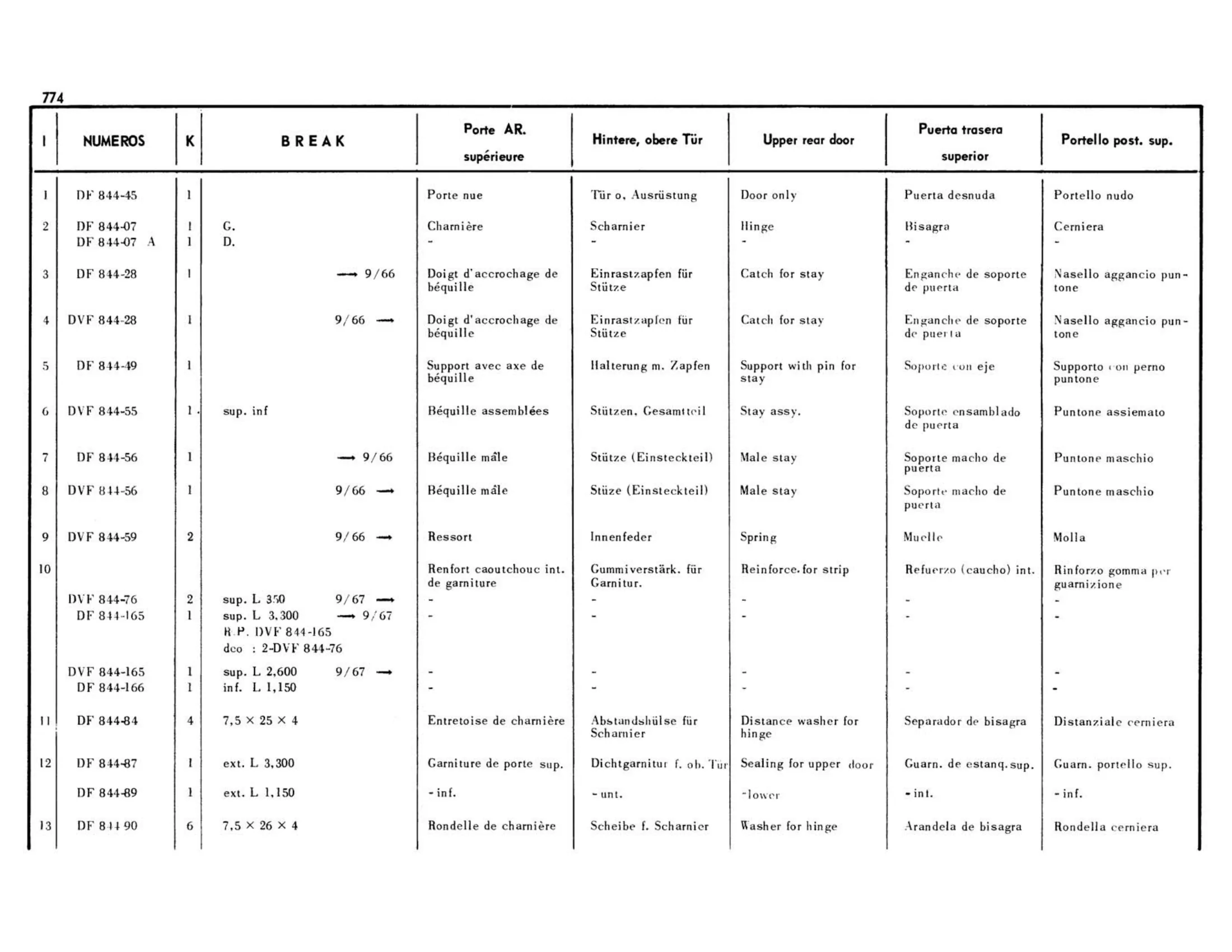

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Upper door rear | Door only | Hinge | Catch for stay | Catch for stay | Support with pin for stay | Stay assy. | Male stay | Male stay | Spring | Reinforce. for strip | Distance washer for hinge | Sealing for door upper | -lower | Washer for hinge
