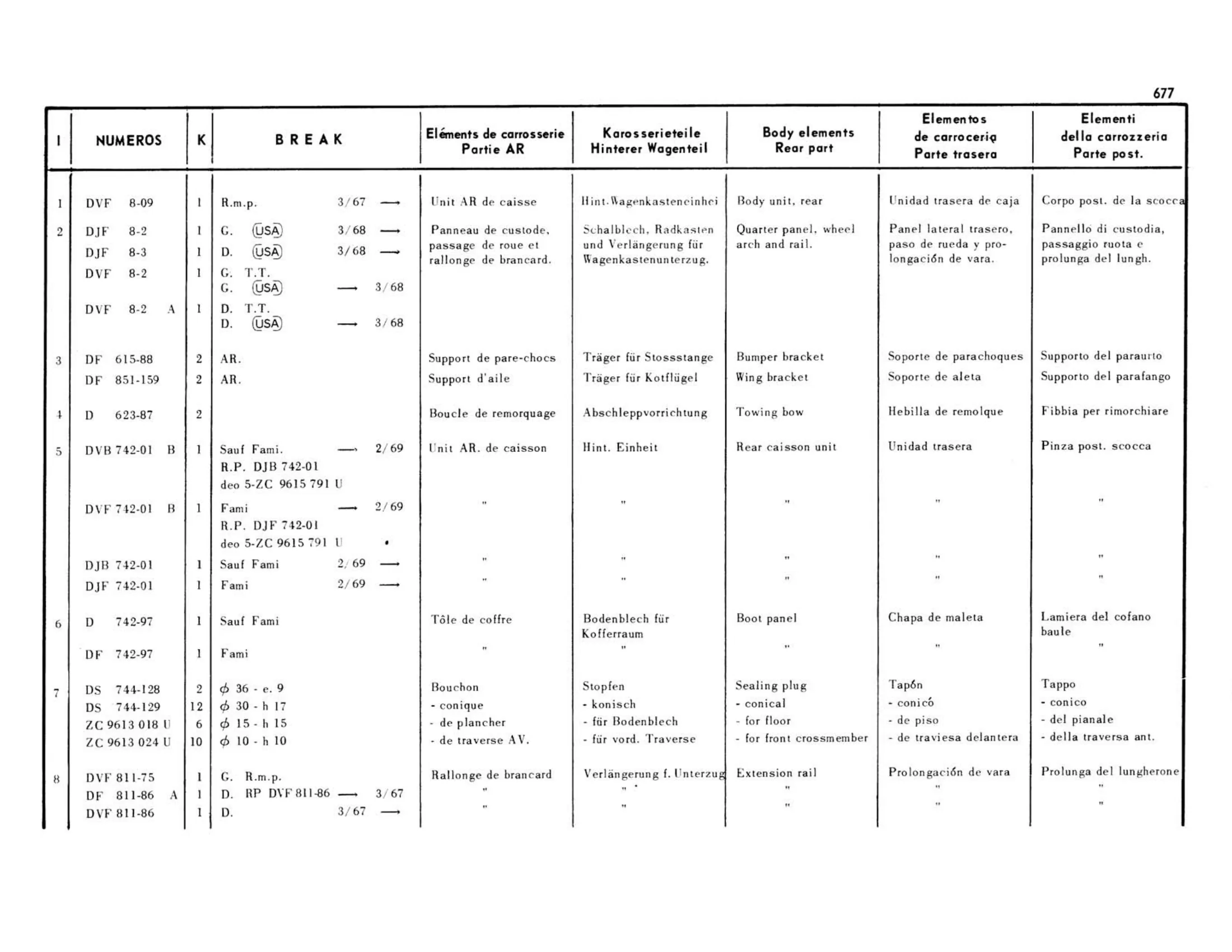

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Body elements Rear part | Body unit, rear | Quarter panel, wheel arch and rail. | Bumper bracket | Wing bracket | Towing bow | Rear caisson unit | Boot panel | Sealing plug | conical - | for floor - | crossmember for front - | Extension rail
