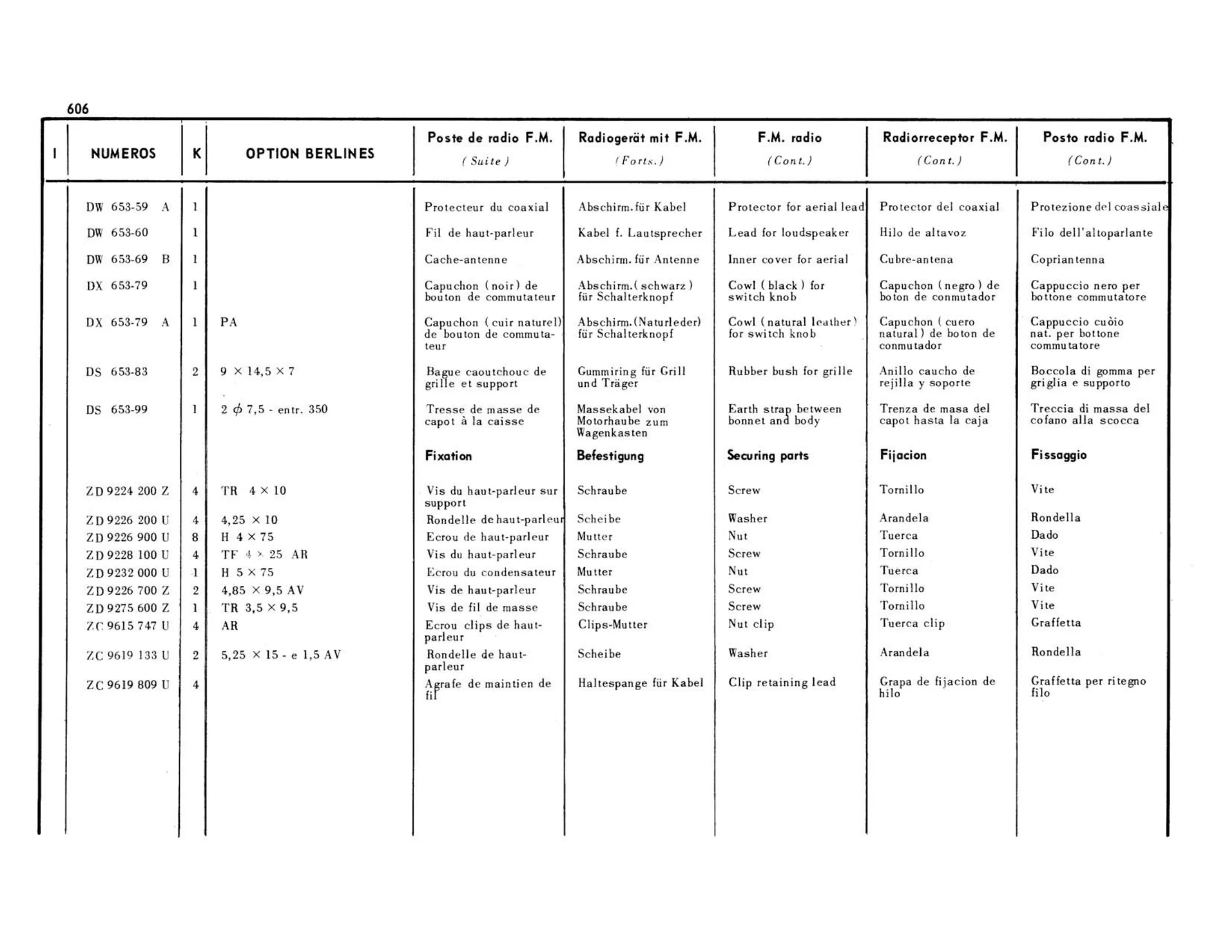

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
radio F.M. | (Cont.) | Protector for aerial lead | Lead for loudspeaker | Inner for aerial cover | Cowl (black ) for switch knob | Cowl (natural leather) for switch knob | Rubber bush for grille | Earth between strap bonnet body and | Securing parts | Screw | Washer | Nut | Screw | Nut | Screw | Screw | Nut clip | Washer | Clip lead retaining
