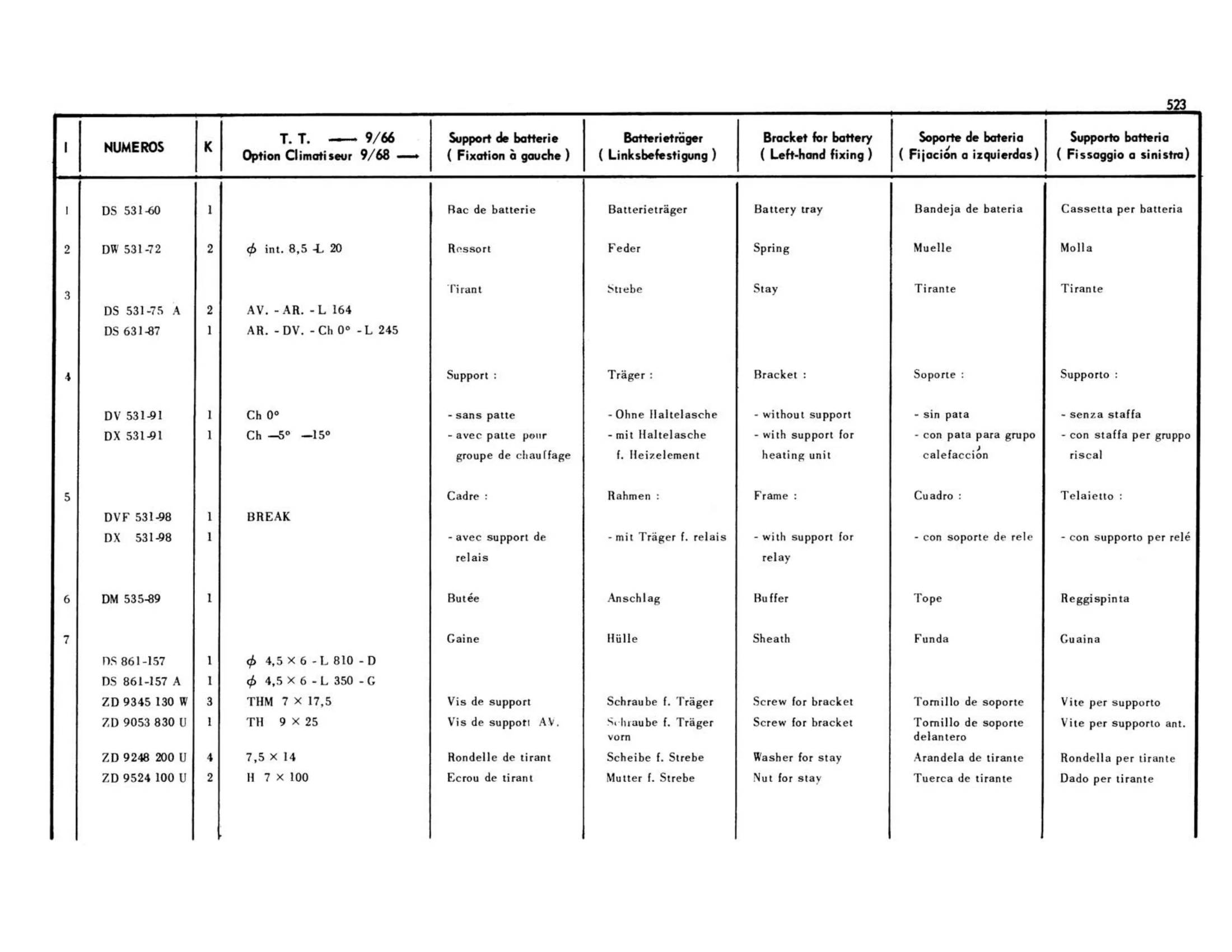

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Bracket battery for | ) ( Left-hand fixing | Battery tray | Spring | Stay | Bracket : | without support - | with for support ~ | heating unit | Frame : | with support for - | relay | Bu ffer | Sheath | Screw for bracket | Screw for bracket | Washer for stay | Nut for stay
