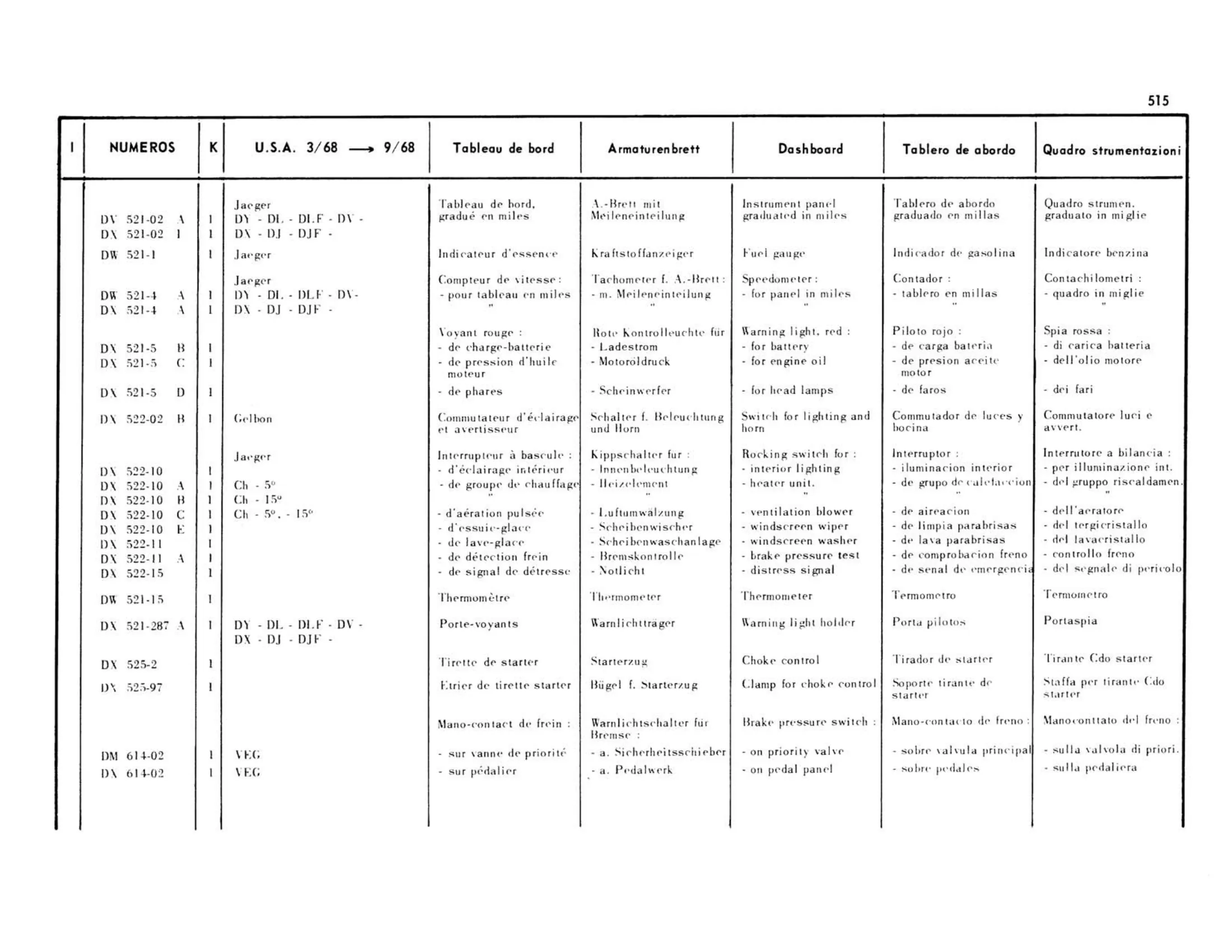

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Dashboard | Instrument panel graduated in miles | Fuei gauge | Speedometer: for panel miles in - | Warning light, red : | for battery - | for engine oil - | for head lamps - | Switch for lighting and horn | : Rocking switch for | interior lighting - | heater unit. | ventilation blower | windscreen wiper | windscreen washer - | brake test pressure distress signal | Thermometer | Warning light holder
