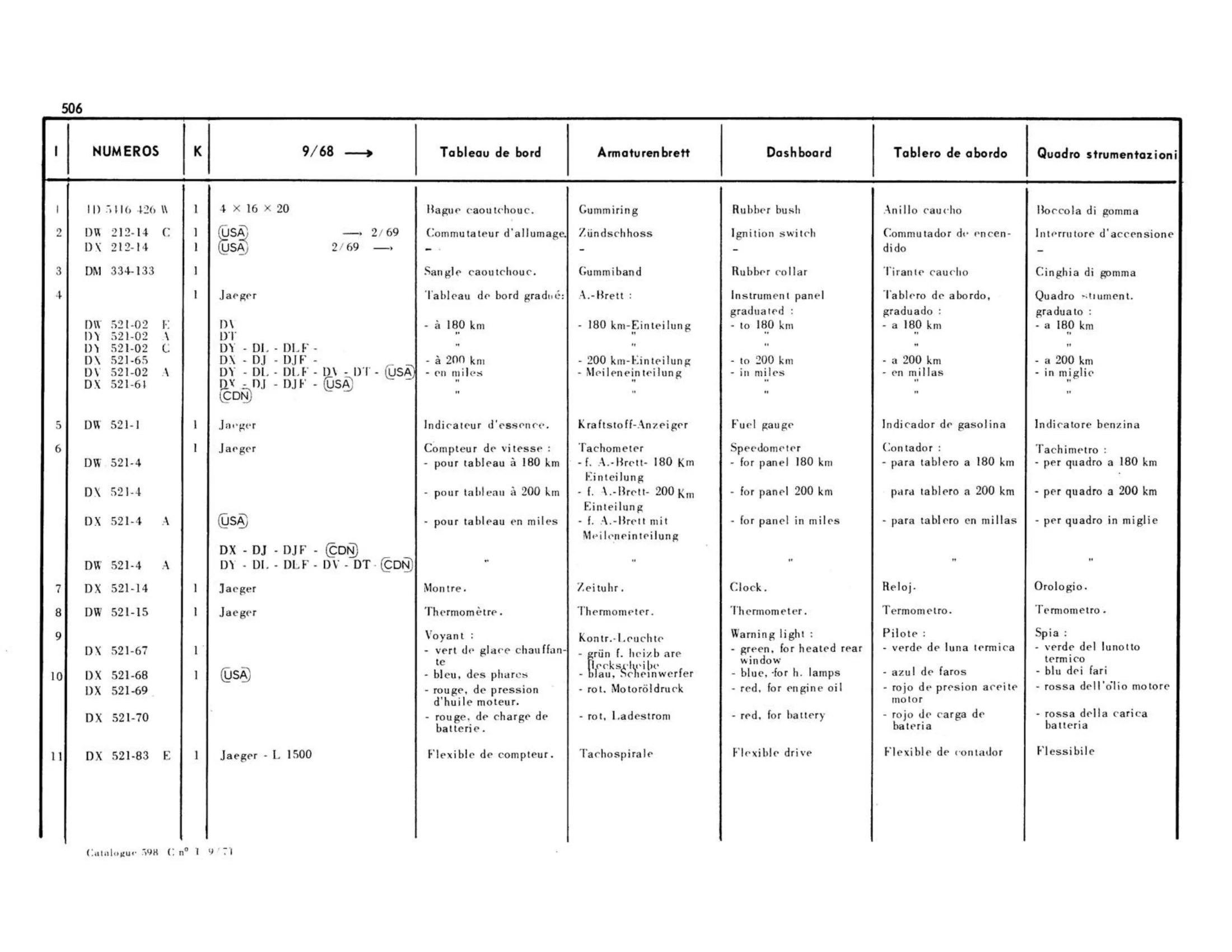

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Dashboard | Rubber bush | Ignition switch | Rubber collar | Instrument panel | graduated : | 180 km to - | 200 km to - | in miles ~ | Fuel gauge | Speedometer for panel 180 km - | for panel 200 km - | for panel in miles - | Clock. | Thermometer. | Warning light : | for heated rear green, - | window | blue, -for h. lamps - | red, for engine oil - | red, for battery - | Flexible drive
