PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

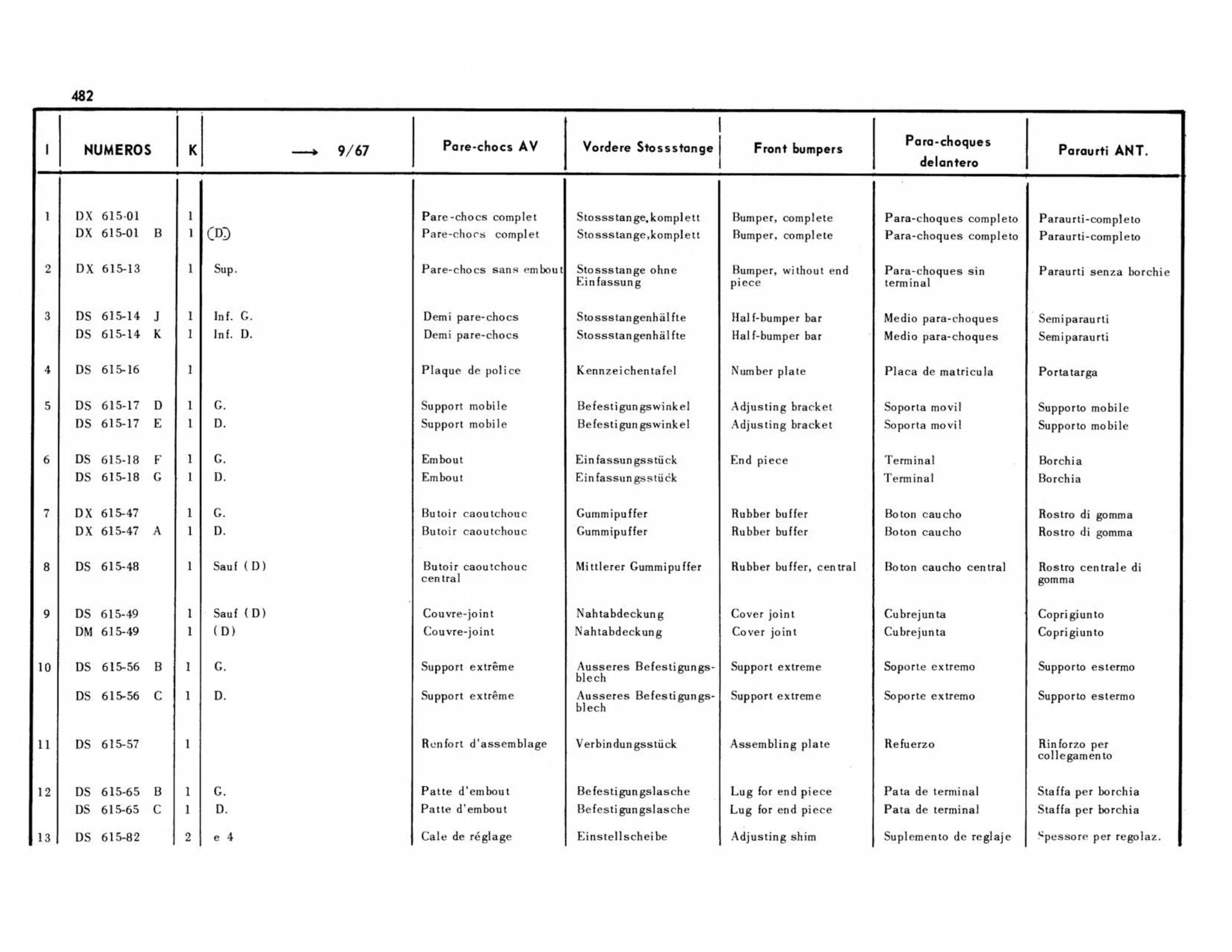

Front bumpers | Bumper, complete | Bumper, complete | Bumper, without end piece | Hal f-bumper bar Hal f-bumper bar | Number plate | Adjusting bracket | Adjusting bracket | End piece | Rubber buffer | Rubber buffer | Rubber buffer, central | Cover joint | Cover joint | Support extreme | Support extreme | Assembling plate | Lug for end piece | Lug for end piece | Adjusting shim
