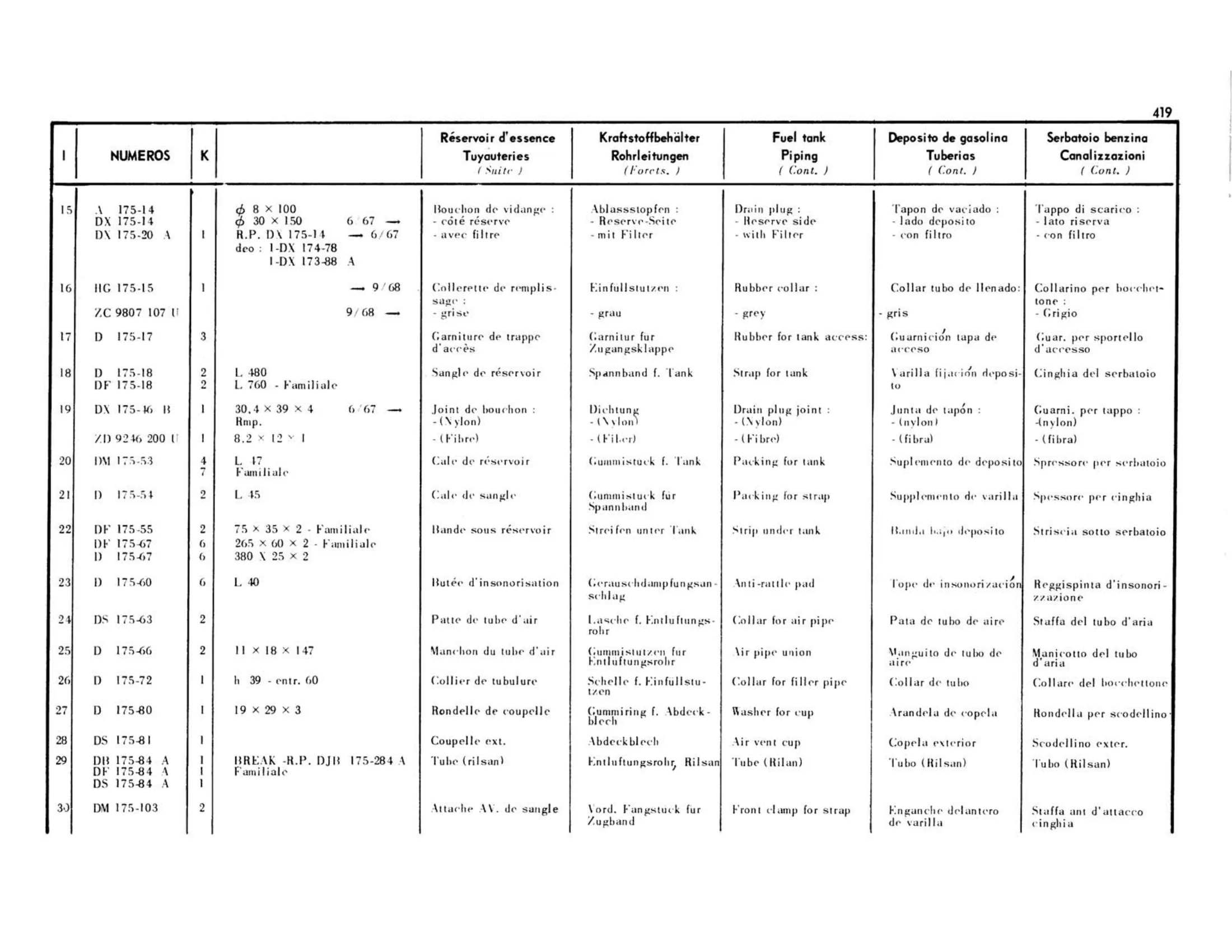

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Fuel tank | Piping ( Cont. ) | Drain plug : | Reserve side - | with Filter - | Rubber collar : | grey > | Rubber for tank access: | Strap for tank | Drain plug joint : | (Nylon) - | (Fibre) - | Packing for tank | Packing for strap | under Strip tank | Anti-rattle pad | Collar for air pipe | \ir pipe union | Collar for filler pipe | Washer for cup | Nir vent cup | Tube (Rilan) | Front clamp for strap
