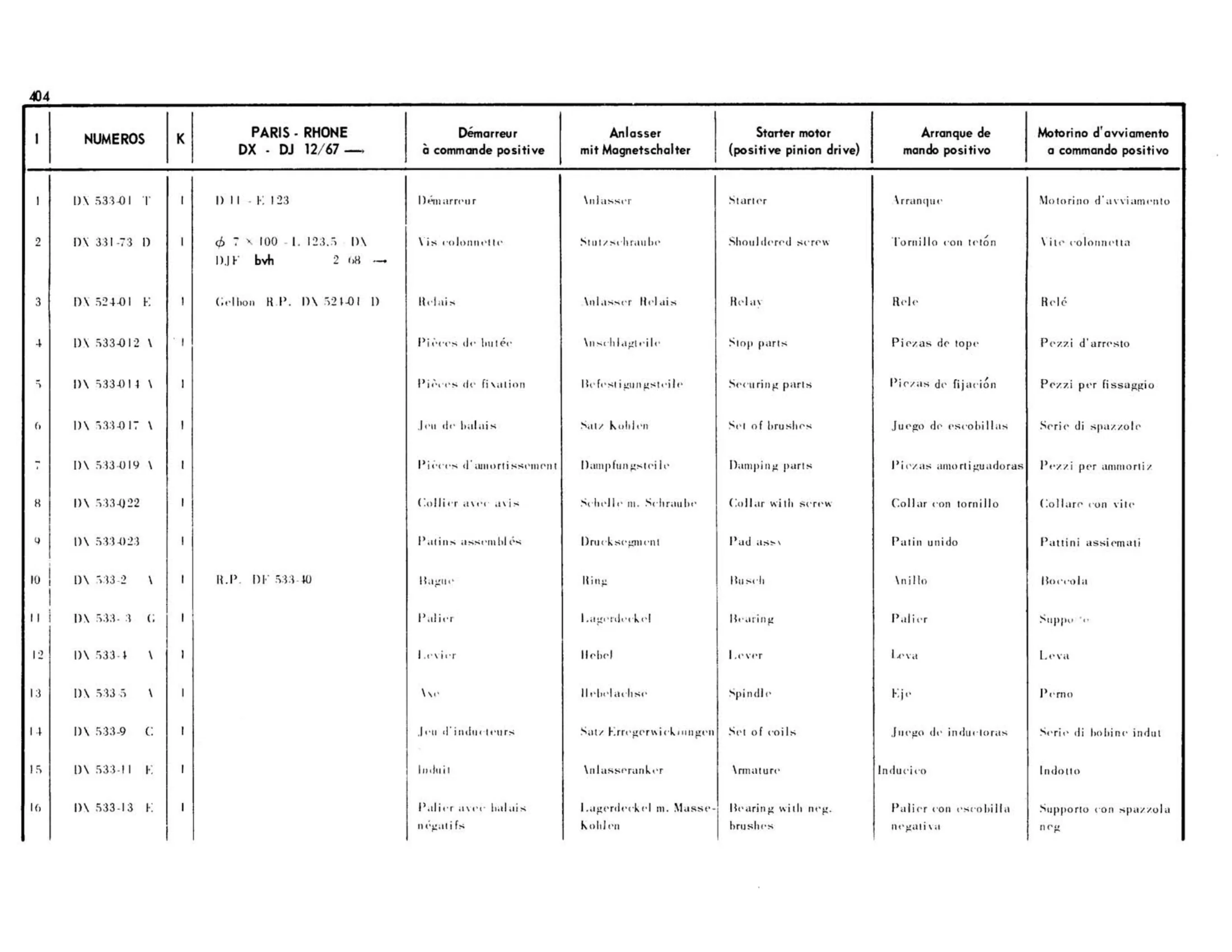

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Starter motor | (positive drive) pinion | Starter | Shouldered screw | Relay | Stop parts | Securing parts | Set of brushes | Damping parts | Collar with screw | Pad assy | Rusch | Bearing | Lever | Spindle | Set of coils | \rmature | Bearing with neg. | brushes
