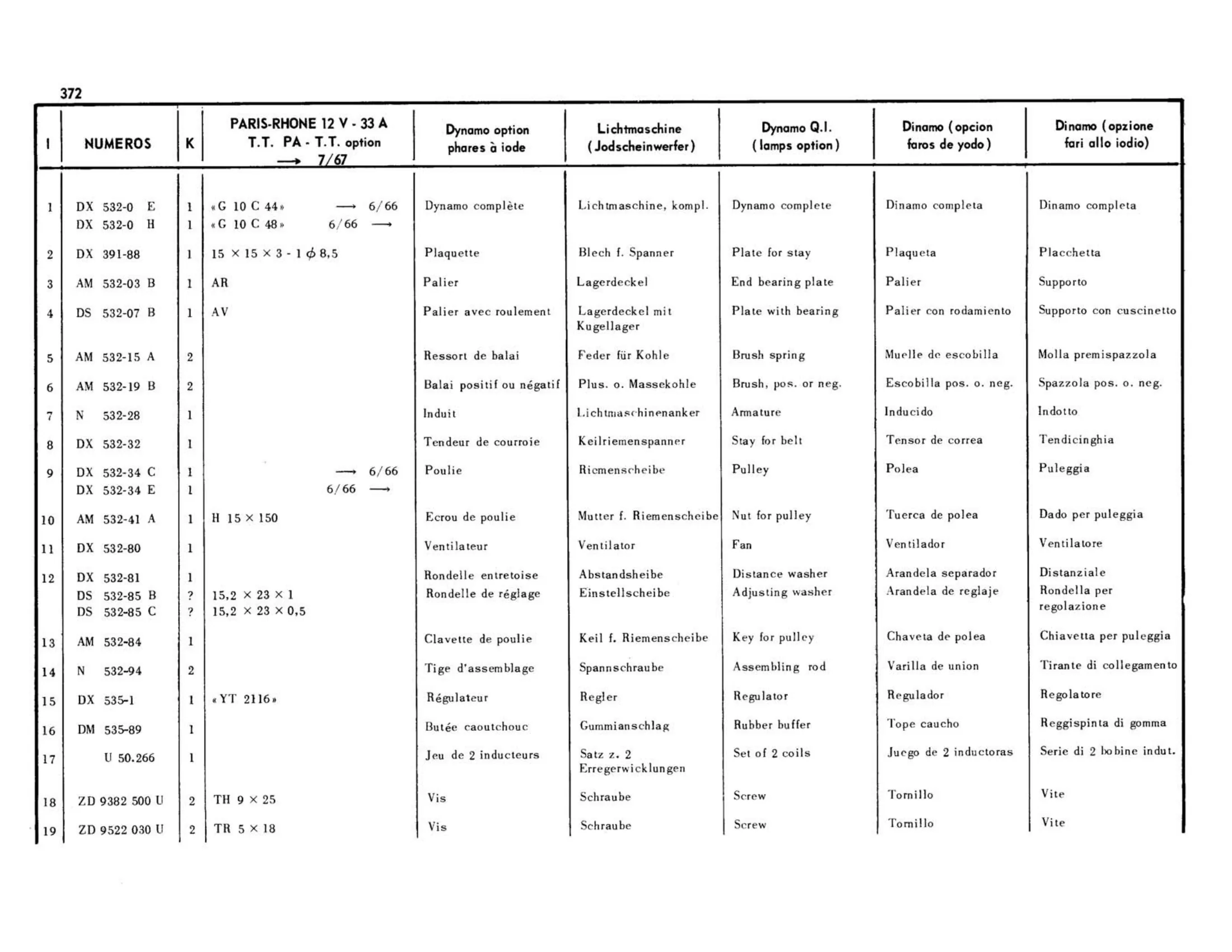

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Dynamo Q.1. ) (lamps option | Dynamo complete | Plate for stay | End bearing plate | Plate with bearing | Brush spring | Brush, pos. or neg. | Amature | Stay for belt | Pulley | Nut for pulley | Fan | Distance washer | Adjusting washer | Key for pulley | rod Assembling | Regulator | Rubber buffer | Set of 2 coils | Screw | Screw
