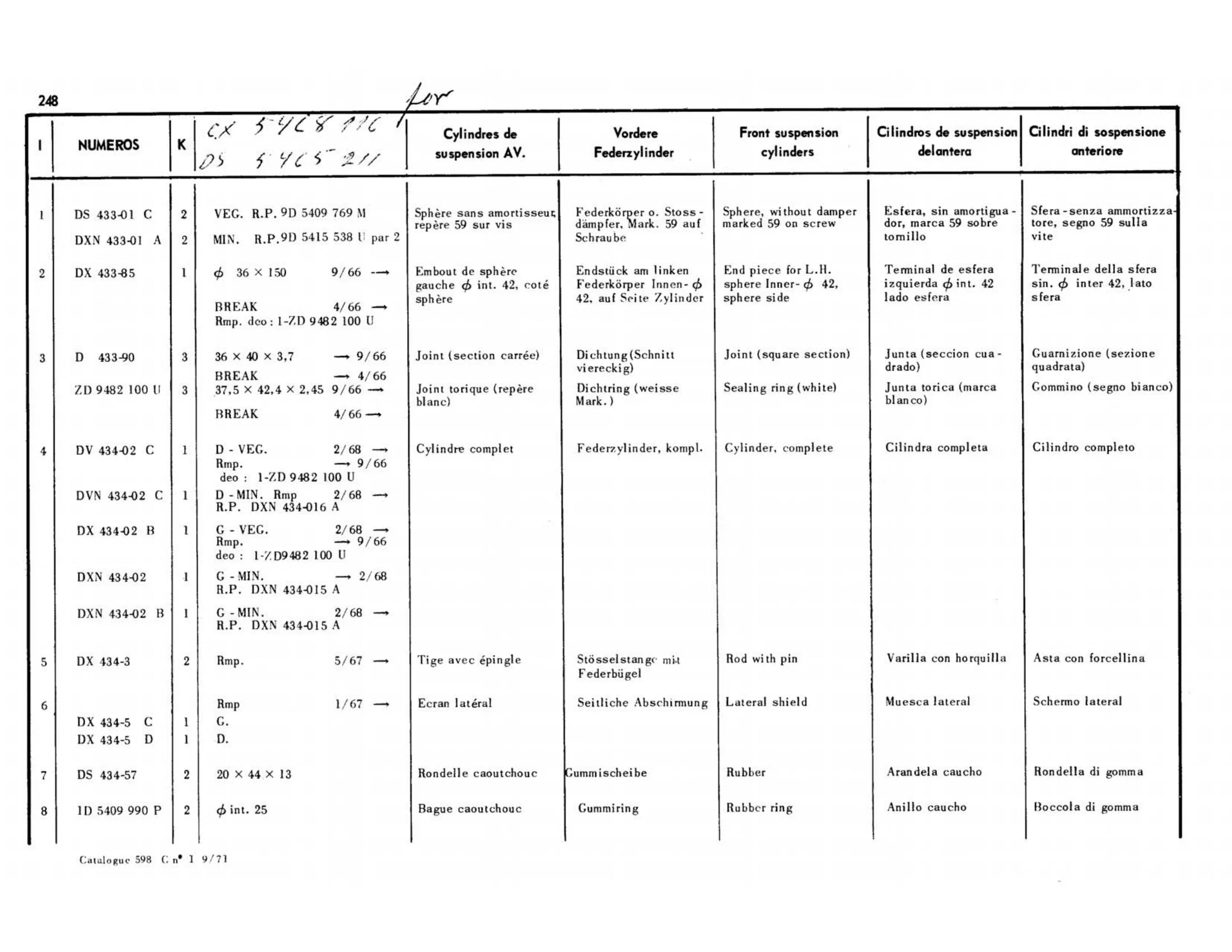

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Front suspension | cylinders | Sphere, without damper marked 59 on screw | End piece for L.H. sphere Inner-@ 42, side sphere | Joint (square section) | Sealing ring (white) | Cylinder, complete | Rod with pin | Lateral shield | Rubber | Rubber ring
