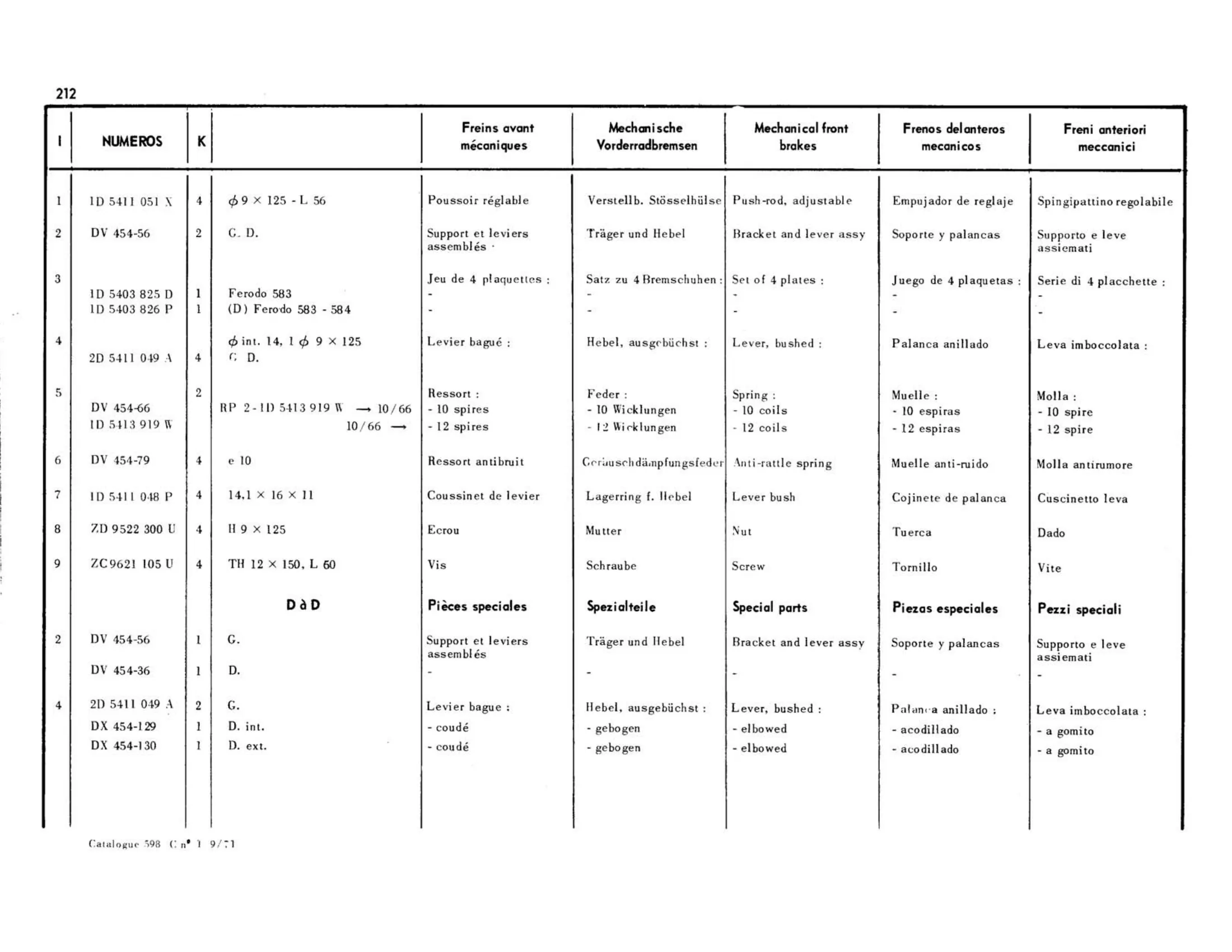

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Mechanical front | brakes | Push-tod, adjustable | Bracket and lever assy | Set of 4 plates ; | Lever, bushed ; | Spring : | 10 coils - | 12 coils - | Anti-rattle spring | Lever bush | Nut | Screw | Special parts | Bracket and lever assy | Lever, bushed : | elbowed - | elbowed -
