PART DESCRIPTIONS ON THIS PAGE (ENGLISH)

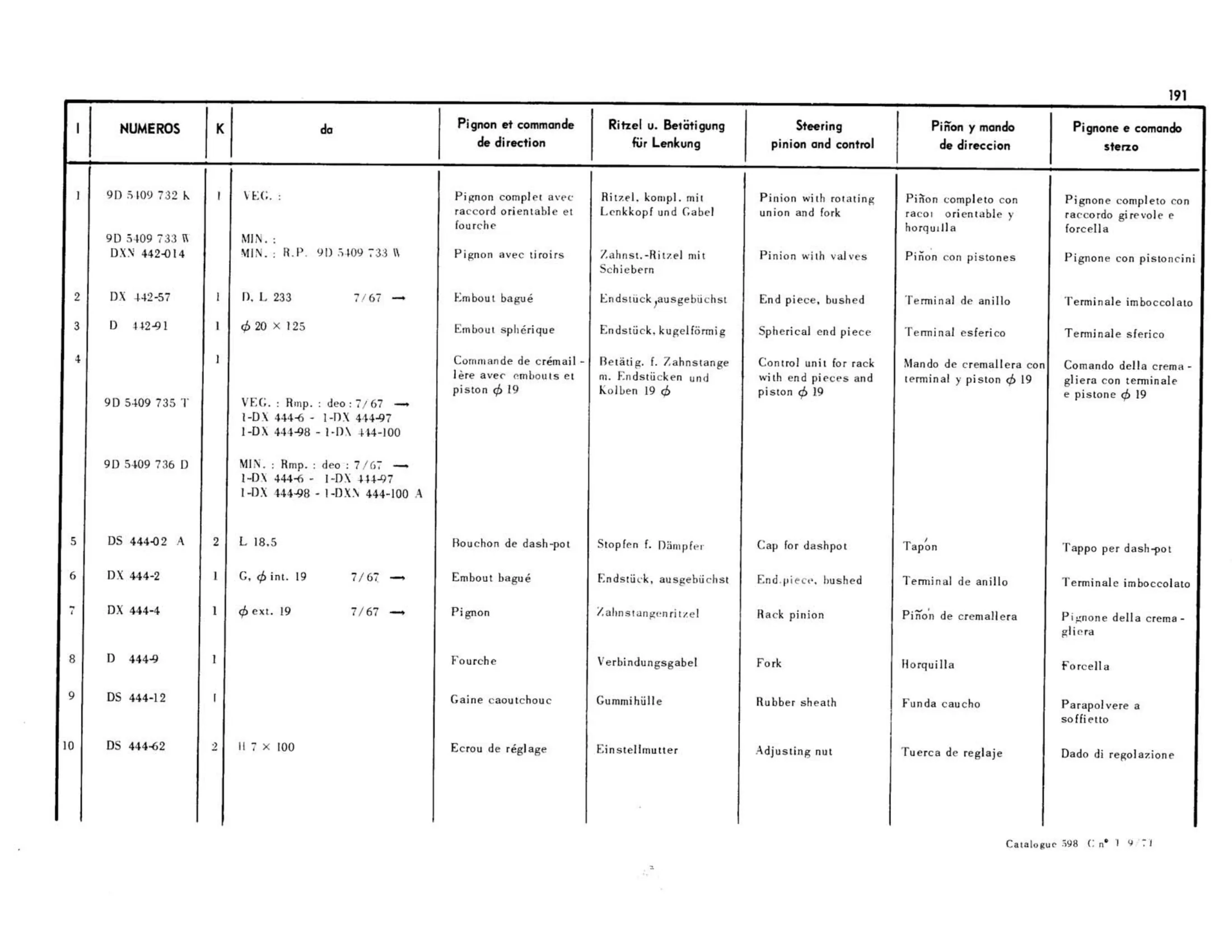

Steering | Pinion and control | Pinion with rotating union and fork | Pinion with valves | End piece, bushed | Spherical end piece | Control unit for rack | with end pieces and piston 19 | Cap for dashpot | End.piece, bushed | Rack pinion | Fork | Rubber sheath | Adjusting nut
