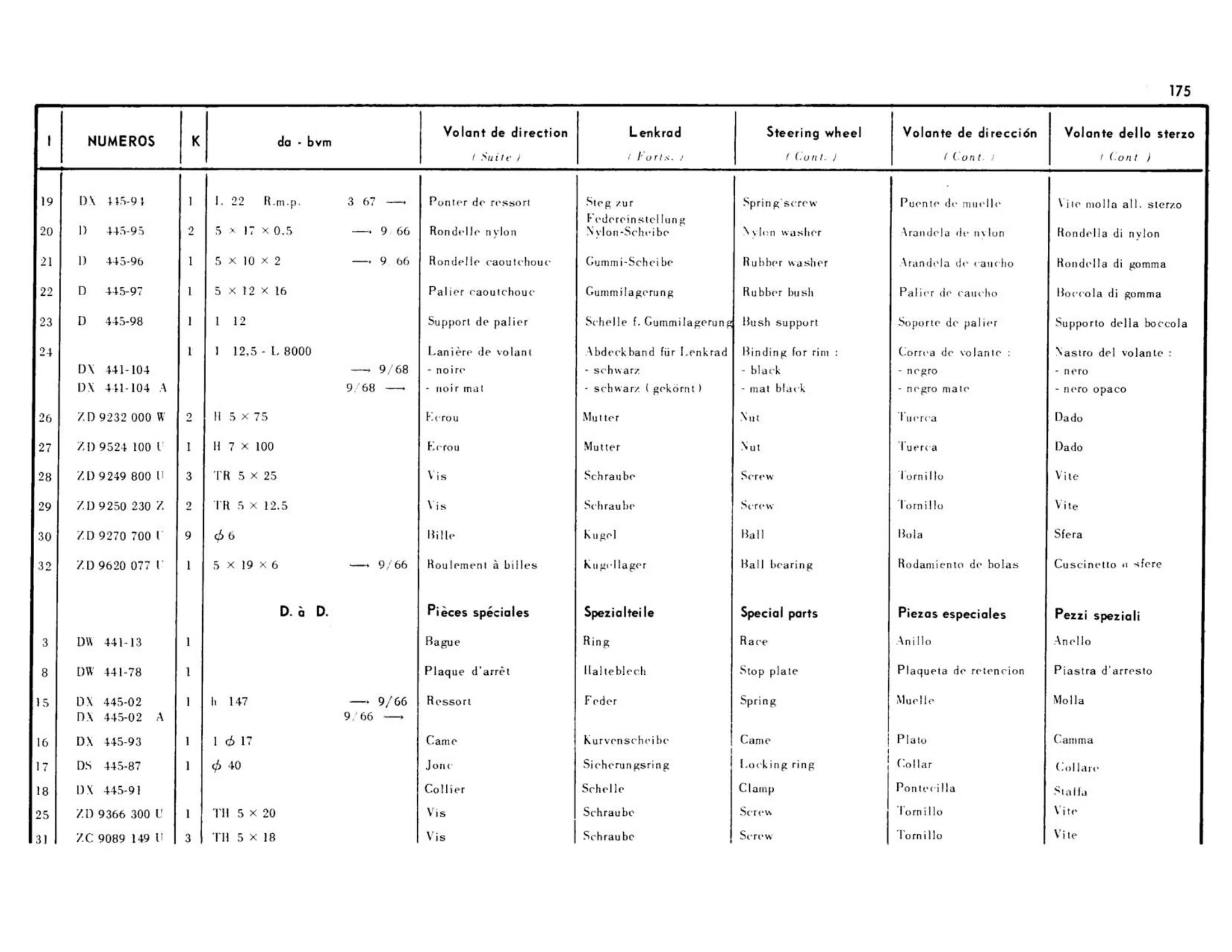

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Steering wheel | (Cont) | Spring’screw | Nylen washer | Rubber washer | Rubber bush | Bush support | Binding for rim : | black - | black mat - | Nut | Nut | Screw | Screw | Ball | Ball bearing | Special parts | Race | Stop plate | Spring | Came | Locking ring | Clamp | Screw | Screw
