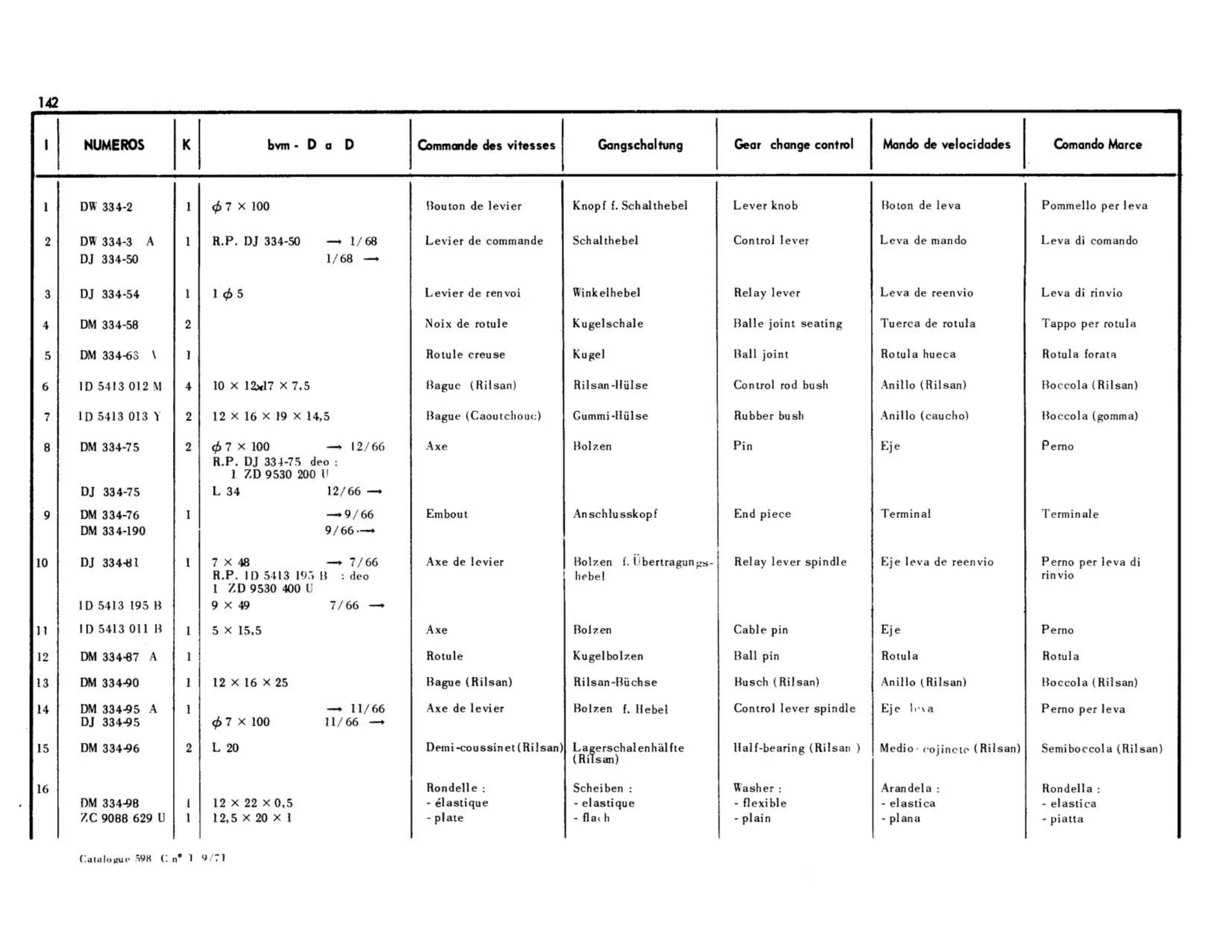

PART DESCRIPTIONS ON THIS PAGE (ENGLISH)
Gear change control | Lever knob | Control lever | Relay lever | Balle joint seating | Ball joint | Control rod bush | Rubber bush | Pin | End piece | Relay lever spindle | Cable pin | Ball pin | Busch (Rilsan) | Control lever spindle | Malf-bearing (Rilsan ) | Washer : | flexible - | plain -
